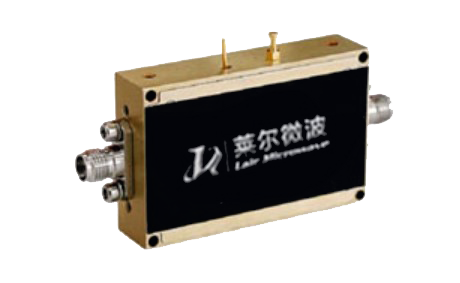

Low Noise Amplifier

Low noise amplifier is a very low noise factor amplifier, generally used as a high frequency

or intermediate frequency preamplifier of various radio receivers, and an amplifier circuit

of high sensitivity electronic detection equipment. In the case of amplifying weak signals,

the noise of the amplifier itself may interfere with the signal seriously, so it is hoped to

reduce this noise to improve the signal to noise ratio of the output. The performance of

the first low noise amplifier directly determines the sensitivity of a receiving system.




Model LF(GHz) HF(GHz) Gain(dB) Gain Flatness(±dB) Noise Figure(dB) P1dB(dBm) DC(V/mA) I/O R.L. (dB) Datasheet
LAL-1001 0.02 3.5 32 / 1.3 18 12/120 11/11
LAL-1002 0.05 0.5 50 / 0.5 19 15/220 14/10
LAL-1003 0.1 3.5 30 / 0.8 18 5/70 11/11
LAL-1004 0.16 0.16 55 / 0.7 22 12/230 18/14
LAL-1005 0.15 0.5 26 / 0.7 22 28/115 18/16
LAL-1006 0.15 0.5 26 / 0.7 22 12/115 18/16
LAL-1007 0.18 0.66 27 / 0.3 23 5/115 11/11
LAL-1008 0.23 0.66 26 / 0.6 23 5/115 13/11
LAL-1009 0.33 0.55 16 / 1.2 18 5/115 11/13
LAL-1010 0.35 0.55 17 / 1.1 20 5/115 11/13
LAL-1011 0.5 1 45 / 0.6 18 15/160 14/10
LAL-1012 0.5 2 21.5 / 1.4 21 15/120 14/14
LAL-1013 0.5 4 32 / 0.8 16 12/160 11/14
LAL-1014 0.5 4 45 / 0.8 26 12/300 10/21
LAL-1015 0.5 4 32 / 0.8 20 24/160 11/14
LAL-1016 0.55 1.2 16.5 / 0.5 20 5/90 11/14
LAL-1017 0.6 1.4 32 / 0.9 21.5 5/260 13/10
LAL-1018 0.7 1 14 / 0.7 19.5 5/65 16/13
LAL-1019 0.8 0.9 38 / 1 22 12/230 14/14
LAL-1020 0.8 2.2 49 / 1 20 12/240 13/14
LAL-1021 0.1 3.5 60 / 0.8 19 15/230 11/14
LAL-1022 0.8 2.5 60 / 0.8 19 15/210 16/11
LAL-1023 0.8 0.9 41 / 1 22 12/230 14/14
LAL-1024 0.9 1.3 39 / 1.2 26 12/210 11/11
LAL-1025 1 2 60 / 0.7 19 15/230 13/11
LAL-1026 0.1 3.5 60 / 0.7 19 28/230 13/14
LAL-1027 1 3 42 / 0.8 18 15/150 11/11
LAL-1028 1.1 1.9 34 / 1.3 18 12/190 14/13
LAL-1029 0.8 1.9 34 / 1.3 20 12/190 14/14
LAL-1030 1.3 2.9 30 / 1 25 5/150 14/14
LAL-1031 1.3 2.9 25 / 1.2 18 5/150 14/11
LAL-1032 1.3 2.9 30 / 1 25 12/160 14/11
LAL-1033 1.55 1.6 38 / 1.2 20 12/160 18/18
LAL-1034 1.5 3 45 / 1.3 15 12/270 14/13
LAL-1035 2 4 58 / 0.75 21 15/165 13/11
LAL-1036 1 9 27 / 1 13 12/70 10/11
LAL-1037 0.5 4 21 / 0.7 19 5/65 10/26
LAL-1038 3 8 58 / 0.8 18 15/160 7/13
LAL-1039 3.3 4.9 60 / 2.2 18 12/250 14/14
LAL-1040 4 8 50 / 0.85 18 15/120 11/11
LAL-1041 4 8 48 / 1 21 12/150 11/11
LAL-1042 4.8 6 15 / 1.5 18 5/75 14/14
LAL-1043 6 15 25 / 1.8 18 +3.5/-5/75 11/11
LAL-1044 8 12 55 / 1.2 17 15/200 14/13
LAL-1045 8 12 55 / 1 17 15/165 21/21
LAL-1046 8 12 36 / 1.2 17 12/170 14/14
LAL-1047 10 15 60 / 1.7 16 12/190 13/13
LAL-1048 16 24 23 / 1.8 18 3.5/100 10/11
LAL-1049 16 24 44 / 1.8 23.5 12/280 10/11
LAL-1050 16 24 23 / 1.8 18 3.5/100 10/11
LAL-1051 0 0.98 32 / 1.5 21.5 12/270 13/12
LAL-1052 0.01 3 36 / 1.5 21 12/220 11/11
LAL-1053 0.01 4 42 / 2.5 20 12/220 6/10
LAL-1054 0.01 10 28 / 2.8 15 12/120 11/14
LAL-1055 0.01 10 28 / 2.8 15 12/120 11/14
LAL-1056 0.01 15 32 / 2.5 26 12/320 16/13
LAL-1057 0.01 20 17 / 2.5 18 8/80 14/14
LAL-1058 0.02 0.2 32 / 2.5 13 15/50 18/16
LAL-1059 0.03 3 36 / 1.5 21 15/200 11/11
LAL-1060 0.03 6 46 / 1.5 20 12/140 13/10
LAL-1061 0.05 3.3 32 / 2 23 12/150 14/14
LAL-1062 0.05 3.3 17 / 1.8 18 5/90 14/14
LAL-1063 0.05 3.3 17 / 1.8 18 5/90 14/14
LAL-1064 0.05 20 28 / 2 23 12/210 11/14
LAL-1065 0.05 20 29 / 1.8 12 12/150 11/11
LAL-1066 0.05 20 28 / 1.8 16 12/130 10/11
LAL-1067 0.05 20 27 / 2.5 19 12/260 14/14
LAL-1068 0.1 4 15 / 2 17 5/70 14/14
LAL-1069 0.1 2.5 20 / 1.3 20 5/85 12/10
LAL-1070 0.1 3 33 / 2 22 12/310 13/14
LAL-1071 0.1 3 35 / 1.7 221 12/220 11/11
LAL-1072 0.1 3 35 / 1.7 21 12/220 11/11
LAL-1073 0.1 4 34 / 2 20 12/270 10/14
LAL-1074 0.1 4 38 / 2.2 25 12/330 16/16
LAL-1075 0.1 10 37 / 1.6 20.5 12/150 13/14
LAL-1076 0.1 10 35 / 2.5 16 12/150 13/14
LAL-1077 0.1 10 33 / 1.6 9 12/180 13/14
LAL-1078 0.1 20 33 / 2.2 26 12/320 11/11
LAL-1079 0.1 18 15 / 1.8 15 12/35 14/14
LAL-1080 0.1 18 15 / 1.8 14 28/35 14/14
LAL-1081 0.15 0.5 42 / 0.8 20 28/200 18/14
LAL-1082 0.2 4 13 / 2.5 21 5/110 10/14
LAL-1083 0.3 3 15 / 1.5 21 5/90 5/7
LAL-1084 0.3 20 14 / 2.5 13 +7/-5/70 16/10
LAL-1085 1 7 45 / 1.2 21 24/200 4/4
LAL-1086 1 12 33 / 1.5 23 12/200 13/16
LAL-1087 1 11 17 / 1.6 18 5/70 14/16
LAL-1088 1 12 35 / 1.5 26 12/320 13/14
LAL-1089 1 12 17 / 2 18 5/70 14/16
LAL-1090 1 12 36 / 1.8 26 12/350 13/14
LAL-1091 0.05 22 28 / 1.8 16 12/130 7/11
LAL-1092 2 6 20 / 1 15 12/150 13/11
LAL-1093 2 8 37 / 0.8 15 15/100 13/14
LAL-1094 2 8 38 / 0.8 15 15/85 14/11
LAL-1095 0.5 12 32 / 2.5 15 12/120 7/7
LAL-1096 2 12 15 / 2.5 15 4/45 13/14
LAL-1097 2.5 3.5 43 / 1.8 30 12/310 10/10
LAL-1098 2.5 3.5 45 / 1 25 12/300 10/10
LAL-1099 3.2 3.8 36 / 1.8 25 12/310 18/14
LAL-1100 3.7 4.5 35 / 1.3 23 12/350 14/16
LAL-1101 1 12 16.5 / 1.6 18 5/40 14/14
LAL-1102 4 8 38 / 0.8 15.5 12/100 11/12
LAL-1103 4.2 5.2 34 / 1.2 23 12/350 13/13
LAL-1104 5 10 38 / 2.3 26 12/280 11/11
LAL-1105 5 10 20 / 2 16 4/80 11/11
LAL-1106 5 12 29 / 1.5 12.5 4/45 14/14
LAL-1107 5 12 36 / 1.8 23 12/150 18/14
LAL-1108 5 20 13 / 2 15 5/30 6/13
LAL-1109 5.2 5.9 32 / 1.5 24 12/290 14/11
LAL-1110 6 17 19 / 1.7 15 4/90 11/10
LAL-1111 6 17 42 / 2 21 12/160 14/10
LAL-1112 6 18 50 / 1.5 14 15/165 11/13
LAL-1113 6 18 38 / 2.5 30 12/680 11/
LAL-1114 6 18 44 / 1.6 27 12/480 10/11
LAL-1115 6 18 53 / 1.5 19 15/200 18/14
LAL-1116 6 18 42 / 1.5 17 12/100 21/21
LAL-1117 6 18 42 / 1.5 17 12/130 14/14
LAL-1118 6 18 19 / 1.8 15 4/90 11/10
LAL-1119 6 20 21 / 2.5 10 3/53 13/13
LAL-1120 8 11 45 / 2.5 29 12/360 14/13
LAL-1121 6 18 31 / 1.6 19.5 12/200 12/14
LAL-1122 8 12 55 / 1.3 15 8~15/165 14/13
LAL-1123 8 16 40 / 1.7 16 12/180 11/11
LAL-1124 9 18 20 / 2 15 3/65 11/16
LAL-1125 9.5 10.8 36 / 2 15 12/180 13/14
LAL-1126 10 17 25 / 1.3 4 24/40 10/11
LAL-1127 10.7 11.7 35 / 1.7 15 12/160 13/18
LAL-1128 12 15 32 / 1.7 19.5 12/200 12/18
LAL-1129 12 18 19 / 1.8 15 4/90 11/11
LAL-1130 12 18 31 / 2 19.5 12/200 12/14
LAL-1131 12 18 31 / 2 19.5 12/200 12/14
LAL-1132 12 18 62 / 1.3 17 15/190 13/13
LAL-1133 6 18 25 / 2 19.5 12/180 13/14
LAL-1134 14 27 20 / 2 15 4/90 14/12
LAL-1135 14 27 19 / 2.2 17 4/90 10/10
LAL-1136 14.2 15.8 39 / 2 16 12/160 12/14
LAL-1137 15.1 15.4 32 / 1.8 19.5 12/200 13/21
LAL-1138 16 17.3 32 / 1.8 19.5 12/200 13/16
LAL-1139 16 27 32 / 2 21 12/160 16/12
LAL-1140 17 27 26 / 1.8 9 3/35 10/11
LAL-1141 17 26 19 / 2.2 14 3/65 11/13
LAL-1142 17 26 19 / 2.2 12 3/100 14/14
LAL-1143 17 26 19 / 2.2 14 15/80 14/14
LAL-1144 17 27 24 / 2.5 12 4/75 18/13
LAL-1145 17 27 38 / 2.2 23 12/200 13/13
LAL-1146 17.7 26 28 / 2.2 21 12/160 14/12
LAL-1147 18 26.5 60 / 2.5 16 12/260 8/7
LAL-1148 20 34 45 / 2 18 12/200 10/10
LAL-1149 24 36 21 / 2.5 7 3/68 10/11
LAL-1150 35 45 16 / 2.5 6 4/87 13/14
LAL-1151 0.01 3 45 / 3 18 12/450 10/10
LAL-1152 0.1 3 36 / 1.5 21 12/220 11/11
LAL-1153 0.01 18 31 / 2.5 26 12/400 10/10
LAL-1154 0.01 18 31 / 2.5 26 12/320 16/13
LAL-1155 0.01 20 14 / 2.5 12 8/60 14/14
LAL-1156 0.01 20 15 / 2.5 21 +5/-5/160 18/18
LAL-1157 0.01 22 26 / 3.5 23 12/580 11/10
LAL-1158 0.01 22 15 / 3 18.5 5/85 14/11
LAL-1159 0.01 22 15 / 2.5 18 12/90 14/11
LAL-1160 0.01 24 17.5 / 4 24 8/200 14/14
LAL-1161 0.01 54 36 / 4 13 12/280 14/14
LAL-1162 0.01 20 15 / 2.5 21 +5/-5/160 18/18
LAL-1163 0.05 46 29 / 3 21 12/355 18/18
LAL-1164 0.08 6 50 / 2.5 26 12/380 7/11
LAL-1165 0.08 6 50 / 2.5 26 12/380 7/11
LAL-1166 0.1 6 29 / / / 5/450 11/11
LAL-1167 0.1 6 38 / 2.8 21 12/180 11/11
LAL-1168 0.1 20 28 / 1.8 16 12/210 11/14
LAL-1169 0.1 18 30 / 2.5 23.5 12/320 10/11
LAL-1170 0.1 15 45 / 2.2 21 12/300 13/13
LAL-1171 0.5 20 60 / 2 22 12/560 13/14
LAL-1172 0.1 20 20 / 3 21 8/200 18/14
LAL-1173 0.1 20 20 / 2.5 21 +8/-5/200 18/14
LAL-1174 0.4 18 35 / 2 27.5 12/600 14/10
LAL-1175 0.5 6 35 / 2.5 25 12/250 7/10
LAL-1176 0.5 6 35 / 2.5 26 12/300 10/14
LAL-1177 0.5 12 34 / 2.2 15 12/120 7/7
LAL-1178 0.5 20 60 / 2 22 15/560 13/14
LAL-1179 0.7 6 47 / 1.6 25 12/350 11/11
LAL-1180 0.7 6 43 / 2.5 25 12/300 11/11
LAL-1181 1 9 26 / 1.6 21 12/180 14/14
LAL-1182 1 21 28 / 2.5 18 12/130 13/11
LAL-1183 1 18 50 / 2.5 25 12/420 13/14
LAL-1184 1 23 29 / 5 20 24/250 11/11
LAL-1185 1 23 33 / 3 20 12/180 6/7
LAL-1186 1 23 15 / 3 15 10/190 10/21
LAL-1187 1 24 15 / 2.5 24 +8/-5/240 11/14
LAL-1188 2 4 44 / 1.8 24 12/220 14/13
LAL-1189 2 6 46 / 1.5 24 12/280 13/13
LAL-1190 2 18 35 / 2 27.5 12/600 14/10
LAL-1191 2 20 18 / 3 21 5/180 11/14
LAL-1192 2 20 29 / 2.5 26 12/300 14/14
LAL-1193 2 20 34 / 2.5 26 12/300 14/14
LAL-1194 2 20 14 / 2.5 16 5/60 6/13
LAL-1195 2 20 46 / 3 17 12/200 14/11
LAL-1196 0.5 6 42 / 2.5 20 12/280 10/13
LAL-1197 3.5 7 16.5 / 2 16 5/60 10/10
LAL-1198 3.5 8.5 44 / 2 26.5 12/250 14/14
LAL-1199 5.5 18.25 20 / 2.5 25 12/350 14/14
LAL-1200 6 18 43 / 2.5 22 12/250 11/11
LAL-1201 6 18 34 / 2.2 28 12/600 10/11
LAL-1202 6 18 43 / 2 30 12/700 11/10
LAL-1203 6 18 39 / 1.8 26 12/410 11/10
LAL-1204 6 18 39 / 2.2 28 12/500 10/11
LAL-1205 6 20 45 / 2.5 22 12/250 11/11
LAL-1206 6 26.5 21 / 2.5 10 3.5/45 21/11
LAL-1207 12 33 20 / 2.3 12 3.3/65 10/10
LAL-1208 12 33 35 / 2.5 23 12/380 13/14
LAL-1209 14 27 20 / 2 15 +4/-5/45 14/12
LAL-1210 15 22 20 / 2 16 4/90 18/21
LAL-1211 15 27 41 / 2.5 28 12/550 11/10
LAL-1212 17 26 36 / 2.2 10 5/135 14/11
LAL-1213 17 26 55 / 1.8 21 12/250 18/10
LAL-1214 17 26 53 / 2.2 18 15/250 11/10
LAL-1215 17 26 35 / 1.8 21 12/160 21/11
LAL-1216 18 40 55 / 4 12 12/260 13/13
LAL-1217 20 50 43 / 1.8 17 12/250 10/11
LAL-1218 30 40.5 25 / 3.5 15 5/100 11/14
LAL-1219 21.7 24.5 34 / 2 21 12/160 21/14
LAL-1220 22 26.5 24 / 2.5 12 3/55 14/13
LAL-1221 24 28 24 / 3 12 3/80 13/11
LAL-1222 26.5 40 48 / 3 21 12/420 10/10
LAL-1223 27 40 30 / 2.5 13 12/110 11/13
LAL-1224 27 40 37 / 2.8 12 12/120 10/13
LAL-1225 28 36 21 / 2.5 11 5/66 13/14
LAL-1226 33 45 25 / 2.5 4 5/25 9/7
LAL-1227 33 50 52 / 2.5 18 12/450 8/10
LAL-1228 40 50 55 / 2.5 17 12/330 8/10
LAL-1229 0.01 40 30 / 5 21 12/450 16/11
LAL-1230 0.01 50 45 / 5 21 12/200 13/9
LAL-1231 0.1 6 30 / 3 26 12/290 10/18
LAL-1232 0.1 15 31 / 4 25 12/330 18/18
LAL-1233 0.1 18 32 / 2.2 26 12/320 11/11
LAL-1234 0.1 10 43 / 2.2 15 12/200 14/18
LAL-1235 0.1 20 43 / 2.5 16 12/200 14/14
LAL-1236 1 2 22 / 2.5 26 15/250 14/14
LAL-1237 1 18 29 / 2.5 18 12/130 13/11
LAL-1238 1 18 43 / 2.5 14 15/200 14/14
LAL-1239 1 18 43 / 2.5 17 15/200 14/14
LAL-1240 0.5 8 35 / 1.5 28 15/480 14/9
LAL-1241 2 18 33 / 2.5 25 12/320 16/13
LAL-1242 2 20 29 / 2.5 26 12/360 14/14
LAL-1243 2 18 15 / 4.5 26 15/200 14/14
LAL-1244 16 40 43 / 3.8 18 12/300 13/11
LAL-1245 16 45 36 / 6.5 21 12/300 9/9
LAL-1246 17 27 28 / 2.2 21 12/160 14/12
LAL-1247 16 33 12 / 3 10 3/65 4/6
LAL-1248 16 40 14 / 3 12 5/90 10/11
LAL-1249 18 40 45 / 2.5 14 12/150 10/14
LAL-1250 18 40 35 / 3 14 12/120 13/13
LAL-1251 18 40 53 / 3 20 12/350 7/7
LAL-1252 20 43.5 45 / 3 22 12/280 11/11
LAL-1253 26.5 40 47 / 2.5 20 12/270 11/10
LAL-1254 27 40 35 / 3 10 12/110 10/10
LAL-1255 18 40.5 25 / 3.5 15 5/100 11/14
LAL-1256 0.01 30 40 / 3.5 28 12/525 14/14
LAL-1257 0.01 40 13 / 5 20 7/160 11/11
LAL-1258 0.1 4 35 / 3 33 12/250 7/16
LAL-1259 1 20 35 / 5 14 12/190 10/10
LAL-1260 2 20 15 / 3.5 25 8/320 14/14
LAL-1261 2 22 29 / 3 22 12/260 14/14
LAL-1262 3 22 28 / 3 22 12/260 13/14
LAL-1263 60 90 38 / 6 9 5/180 7/7
LAL-1264 0.1 67.5 45 / 5 17 12/600 13/13
LAL-1265 0.5 40 43 / 4 18 12/550 13/13
LAL-1266 0.5 80 25 / 6 22 12/250 10/11
LAL-1267 1 40 43 / 4 22 12/500 14/14
LAL-1268 18 47 70 / 5 10 12/1000 10/10
LAL-1269 30 65 38 / / 22 12/450 10/7
LAL-1270 30 65 20 / / 12 +4/-5/400 7/7
LAL-1271 33 50 20 / 5.5 11 12/200 10/10
LAL-1272 35 60 20 / 7 20 4/400 7/7
LAL-1273 18 40 40 / 5.5 20 12/500 10/10
LAL-1274 35 70 35 / 8 17 5/650 10/10
LAL-2001 0.2 6 17 1 1.2 16 6~15/46 12/20
LAL-2002 0.8 4 33 1.5 0.8 14 6~15/65 20/11
LAL-2003 1 9 28 0.5 0.7 14 6-15/70 11/14
LAL-2004 1 18 15 0.5 1.8 17 6~15/35 13/19
LAL-2005 1 40 40 2.5 6 13 8~15/650 12/10
LAL-2006 1 50 40 2.5 7 12 8~15/650 12/10
LAL-2007 2 6 26 1 0.7 12 6-15/30 11/20
LAL-2008 4 8 27 0.3 0.7 11 6-15/30 20/20
LAL-2009 6 18 19 1.2 1.5 15 5~15/70 10/12
LAL-2010 6 18 30 1.2 2.4 17 5~15/90 10/15
LAL-2011 7 10 37 0.6 0.9 12 6-15/67 14/15
LAL-2012 8 12 29 1 1.1 3 6-15/10 25/15
LAL-2013 8 16 21 1.5 1.4 13 5-15/56 10/15
LAL-2014 14 29 26 2 2.5 9 5~15/65 12/15
LAL-2015 20 32 24 0.4 1.6 3 5~15/15 13/13
LAL-2016 20 44 21 1 3.8 13 6~15/75 12/13
LAL-2017 24 40 20 2 2 10 6~15/45 12/15
LAL-2018 26 38 26 1.2 2 5 5~15/10 11/18
LAL-2019 36 50 21 0.7 2.8 8 5~15/45 10/10
LAL-2020 75 110 18 3 4.5 0 6~15/30 10/10
LAL-2021 9 10 21 ±0.5 2.0 18.5 5.5~15/85 13/13
LAL-2022 2 8 33 1 2 15 5~15/100 14/14
LAL-2023 0.5 8 35 2 2 15 6~15/120 14/13
LAL-2024 9 10 46 1 0.9 20 8~15/190 12/12
LAL-2025 0.7 13 40 1 2 15 6~15/110 12/16
LAL-2026 12 18 34 1 1.5 14 6~15/125 13/13
LAL-2027 2 18 25 1.5 2 17 6~15/100 13/14
LAL-2028 0.2 18 27 1 2 15 6~15/75 12/15
LAL-2029 1 18 55 1 2 17 6~15/140 12/18
LAL-2030 20 40 37 1.5 4 22 6~15/220 14/14
LAL-2031 18 40 58 1.5 3.5 21 6~15/250 18/14
LAL-2032 0.1 8 55 2.5 2 30 24/300 12/12
LAL-2033 18 40 45 1 4 24 24/100 14/14
LAL-2034 1 40 36 1 3 15 24/250 12/12
LAL-2035 65 110 18 1.5 3.5 0 6~15/30 10/10
LAL-2036 9 10 21 0.5 1.5 18.5 +5.5~15/85 13/13
LAL-3001 0.1 3.5 28 1 1 18 5/100 10/10
LAL-3002 0.1 3.5 57 2 1 18 5/200 10/10
LAL-3003 0.1 8 17 / 2 17 5/100 10/10
LAL-3004 0.1 8 33 / 2 17 5/160 8/10
LAL-3005 0.5 2 17 2.5 1 15 5/80 10/10
LAL-3006 0.5 20 12 0.7 2.5 12 5/60 8/10
LAL-3007 0.5 20 25 0.7 2.5 13 5/80 8/10
LAL-3008 1 9 25 0.7 1 12 5/50 10/10
LAL-3009 1 9 50 / 1 12 5/100 10/10
LAL-3010 1 18 13 0.7 2 16 5/50 8/10
LAL-3011 1 18 27 1.5 2 16 5/100 10/10
LAL-3012 1 18 27 2 2 20 12/250 8/8
LAL-3013 1 18 40 1 1.8 16 5/130 8/10
LAL-3014 1 18 55 2 1.8 16 5/180 8/10
LAL-3015 2 6 25 0.7 1 10 5/100 10/10
LAL-3016 2 6 50 / 1 10 5/100 10/10
LAL-3017 4 8 25 0.7 1 10 5/100 10/10
LAL-3018 4 8 50 1.5 1 10 5/100 10/10
LAL-3019 6 18 22 1.5 1.5 10 5/40 10/10
LAL-3020 6 18 35 / 1.5 16 5/150 10/10
LAL-3021 6 18 50 / 2.5 27 12/700 10/10
LAL-3022 6 18 55 / 1.7 16 5/200 10/10
LAL-3023 15 26.5 15 1 2 8 5/80 10/12
LAL-3024 15 26.5 30 0.75 2 8 5/80 10/12
LAL-3025 15 26.5 45 2 2 15 5/300 7/7
LAL-3026 18 26.5 35 1.5 1.8 20 5/250 10/10
LAL-3027 50kHz 20 15 / 3 15 12/80 10/10
LAL-3028 50kHz 20 28 / 3 15 12/160 10/10
LAL-3029 0.01 43 12 2 4.5 13 5/70 10/10
LAL-3030 0.01 43 23 2 4.5 13 5/140 10/10
LAL-3031 0.01 43 35 / 4.5 13 5/210 10/10
LAL-3032 0.01 43 50 3 4.5 13 5/250 10/10
LAL-3033 75kHz 43 23 / 4.5 13 5/150 10/10
LAL-3034 2 43 12 1.5 4 15 5/80 10/10
LAL-3035 2 43 25 1.5 4 15 5/160 10/10
LAL-3036 2 43 40 / 4 15 5/250 10/10
LAL-3037 2 43 50 / 4 15 5/300 10/10
LAL-3038 2 43 27 1.5 4.5 20 12/260 10/10
LAL-3039 2 43 42 1.5 4 20 12/330 10/10
LAL-3040 17 43 20 3 3 12 5/80 10/10
LAL-3041 17 43 43 5 3 12 5/160 10/10
LAL-3042 18 32 27 0.8 3 10 5/160 10/10
LAL-3043 18 32 40 1.5 3 10 5/300 14/14
LAL-3044 18 40 33 / 3.5 10 5/220 14/14
LAL-3045 18 40 40 2 3.5 20 5/380 10/8
LAL-3046 18 40 53 1.5 4 10 5/280 10/10
LAL-3047 18 40 60 3 4 20 8/450 10/10
LAL-3048 18 44 17 0.7 3.5 13 5/90 10/10
LAL-3049 18 44 40 3.5 3 13 5-8/200 10/8
LAL-3050 18 44 38 / 3 18 5/280 10/10
LAL-3051 22 32 23 1 2 3 5/30 8/8
LAL-3052 22 32 40 / 2 20 5/210 10/10
LAL-3053 22 44 23 1.5 2.5 6 5/50 10/10
LAL-3054 22 44 38 2 2.5 10 5/150 10/10
LAL-3055 0.01 50 12 / 5 13 5/70 10/10
LAL-3056 0.01 50 23 / 5 13 5/170 10/10
LAL-3057 0.01 50 35 2 5 13 5/360 8/8
LAL-3058 0.01 50 50 3 5 13 5/250 10/10
LAL-3059 75kHz 50 23 / 5 13 5/150 10/10
LAL-3060 2 50 25 2 5 10 5/160 10/10
LAL-3061 2 50 38 2 5 10 5/250 10/10
LAL-3062 2 50 50 / 5 10 5/300 10/10
LAL-3063 15 50 45 / 5 10 5/450 10/10
LAL-3064 18 50 30 2.5 5 15 5/250 12/12
LAL-3065 22 44 40 2 2.5 18 12/250 10/10
LAL-3066 22 44 45 3 2.5 21 5/500 10/10
LAL-3067 30 50 23 / 2.8 5 5/50 10/10
LAL-3068 30 50 38 3 2.8 13 5/150 10/10
LAL-3069 30 50 45 / 2.8 20 5/650 10/10
LAL-3070 40 60 18 / 3 3 5/20 7/7
LAL-3071 40 60 38 / 3 3 5/30 7/7
LAL-3072 40 67 33 4 5 13 5/220 7/7
LAL-3073 55 66 15 / 6 8 5/90 7/7
LAL-3074 55 66 35 / 6 8 5/150 7/7
LAL-3075 45 75 16 / 4 -3 5/35 7/7
LAL-3076 45 75 35 3 4 -3 5/75 7/7
LAL-3077 55 90 15 / 6 7 5/80 7/7
LAL-3078 55 90 35 3 6 7 5/180 7/7
LAL-3079 0.5 18 12 / 2.5 12 5/50 8/10
LAL-4001 0.1 3 28 1 1 10 15/150 8/9
LAL-4002 0.1 3 31 1.5 2 21 15/250 9/9
LAL-4003 0.1 4 62 1 1 10 15/200 9/9
LAL-4004 0.1 6 26 1.5 2.6 20 15/250 9/9
LAL-4005 0.1 6 42 1 1.3 10 15/200 9/9
LAL-4006 0.1 8 28 1.5 1.4 10 15/175 9/9
LAL-4007 0.1 8 40 1.5 4.5 10 9~15/300 8/8
LAL-4008 0.1 8 47 1 1.4 10 8/225 9/9
LAL-4009 0.1 10 28 1.5 2 10 12~15/125 8/8
LAL-4010 0.1 18 14 1.5 3.5 12 10~15/110 9/7
LAL-4011 0.1 18 28 2.5 3.5 27 10~15/160 9/7
LAL-4012 0.1 18 34 2.8 3.8 20 15/250 7/7
LAL-4013 0.1 18 40 1.75 4.5 15 9~15/300 8/8
LAL-4014 0.1 20 19 2.5 3 10 15/150 7/7
LAL-4015 0.1 20 30 1.75 4 15 9~15/300 7/7
LAL-4016 0.1 20 34 3 3.5 18 15/200 7/7
LAL-4017 0.1 30 35 3.3 4.5 18 12/530 11/14
LAL-4018 0.5 2 28 1 0.8 18 15/10 9/9
LAL-4019 0.5 2 40 1.5 2 15 9~15/200 9/9
LAL-4020 0.5 3 33 0.75 1.4 10 10~15/90 11/11
LAL-4021 0.5 6 28 1 1 10 15/125 8/8
LAL-4022 0.5 18 27 2.5 2.5 20 12/500 9/9
LAL-4023 0.5 18 36 3 2.5 23 12~15/475 7/7
LAL-4024 0.5 18 42 2.5 3 20 15/450 7/7
LAL-4025 0.5 26.5 18 2.5 4 8 15/175 7/7
LAL-4026 1 2.5 35 0.6 0.6 25 12~15/230 11/12
LAL-4027 1 2 45 1 0.5 13 15/205 9/9
LAL-4028 1 4 24 1 1.5 10 8~12/50 9/9
LAL-4029 1 4 37 0.75 1.5 10 11~13/12 9/9
LAL-4030 1 8 33 1.5 1.5 15 8~12/120 8/8
LAL-4031 1 12 32 2.5 2 12 8~12/120 7/7
LAL-4032 1 18 30 1.75 2.5 15 12/250 8/8
LAL-4033 1 18 30 2.5 2.5 15 12/330 7/7
LAL-4034 1 18 40 1.75 3 15 9~12/300 8/8
LAL-4035 1 26.5 30 2 3 10 15/250 8/9
LAL-4036 1 40 30 3.25 6 5 9~15/300 7/7
LAL-4037 1 40 40 3.3 6 10 9~15/300 7/7
LAL-4038 2 4 32 1 0.6 10 15/150 9/9
LAL-4039 2 4 40 1 1 15 15/225 9/9
LAL-4040 2 6 40 1.25 0.9 12 8~15/90 9/8
LAL-4041 2 8 40 1.5 1.2 15 15/230 9/9
LAL-4042 2 18 13 1.5 3 13 12/70 9/9
LAL-4043 2 18 33 2 3 14 12/300 9/9
LAL-4044 2 18 40 1.75 3 15 9~12/300 8/8
LAL-4045 2 20 18 2 3.6 20 15/350 7/7
LAL-4046 2 26.5 28 2.2 3 10 15/219 7/7
LAL-4047 4.4 5 43 0.8 1.2 20 15/600 15/15
LAL-4048 4.5 6.5 27 1 0.6 10 5~8/100 14/14
LAL-4049 4 8 32 1 0.7 10 15/150 9/9
LAL-4050 4 8 40 1 0.7 10 12~15/150 9/9
LAL-4051 4 8 50 1.5 0.7 10 15/200 9/9
LAL-4052 6 12 30 1.5 2.3 10 9~15/215 9/9
LAL-4053 6 18 33 2 1.9 5 15/200 7/7
LAL-4054 6 18 38 2 2.5 18 10~15/110 7/9
LAL-4055 6 18 48 2 2 10 15/200 7/7
LAL-4056 8 12 22 1 4 20 15/250 9/9
LAL-4057 8 12 29 1.25 1 10 15/125 9/9
LAL-4058 8 12 40 1.8 1 20 15/270 9/9
LAL-4059 8 12 55 1.75 0.9 10 15/250 9/9
LAL-4060 9KHz 3 32 1.25 2.5 15 12/110 9/7
LAL-4061 9KHz 3 40 1.5 2.5 15 12/140 9/9
LAL-4062 10KHz 0.5 55 1 1 16 12/110 9/7
LAL-4063 0.01 1 30 0.7 1 16 9~15/110 14/14
LAL-4064 0.01 1 50 1.25 1 16 10~15/170 11/11
LAL-4065 0.01 6 16 1 4 11 9~15/60 9/9
LAL-4066 0.01 6 34 2 4 11 9~15/130 9/9
LAL-4067 11 13 45 1 1 10 15/190 10/10
LAL-4068 11 13 45 1 1 15 15/225 9/9
LAL-4069 12 18 30 1.5 2.2 10 9~15/215 9/9
LAL-4070 12 18 35 1.5 1.5 10 15/200 9/9
LAL-4071 12 18 37 1.5 1.5 10 15/200 9/9
LAL-4072 12 18 40 1.5 2.2 10 9~12/250 9/9
LAL-4073 18 26.5 20 1.5 2.8 20 9~15/275 9/9
LAL-4074 18 26.5 30 1.5 2.8 15 9~15/220 9/9
LAL-4075 18 26 40 1.5 2.5 12 10~15/180 10/10
LAL-4076 18 26 43 1 2.4 19 12~15/225 9/7
LAL-4077 18 40 20 2.5 3.5 7 9~15/150 7/7
LAL-4078 18 40 30 2.5 5 10 9~15/200 7/7
LAL-4079 18 40 30 2.5 3.5 12 11~13/95 8/8
LAL-4080 18 40 41 3 3 12 11~16/200 7/7
LAL-4081 20 26 30 1 2 10 10~12/160 9/9
LAL-4082 0.02 1 32 1.5 2.5 10 15/200 7/7
LAL-4083 0.02 3 25 0.75 1.6 12 10~15/75 10/10
LAL-4084 21 24 38 1.5 2.2 10 15/200 10/10
LAL-4085 26.5 40 20 2.5 4.2 10 9~15/150 7/7
LAL-4086 26.5 40 30 2.5 3 8 5.5/70 7/7
LAL-4087 26.5 40 30 2.5 5 15 9~15/200 7/7
LAL-4088 26.5 40 40 1.5 2.3 10 12/200 7/7
LAL-4089 31 32.5 30 1 3.5 10 6~12/220 9/9
LAL-5001 0.1 1.2 41 0.5 3.5 19 15/120 14/14
LAL-5002 0.1 1.4 20 2.2 0.8 17 12/75 19/16
LAL-5003 0.1 1.5 20 6 0.4 19 9-15/80 14/11
LAL-5004 0.1 1 24 0.25 2 24 12 to 15/160 14/14
LAL-5005 0.1 2 60 1 2.5 19 12-15/170 7/14
LAL-5006 0.1 2.5 25 1.5 2.4 -1 12/17 20/11
LAL-5007 0.2 0.3 21 0.2 1.1 19 15/75 17/11
LAL-5008 0.2 0.5 24 1.7 0.6 21 5/80 8/12
LAL-5009 0.2 1.8 35 0.3 1.8 13 12/80 9/15
LAL-5010 0.2 1 20 1.2 0.85 17 12/75 17/14
LAL-5011 0.3 1.2 40 4 0.6 19 12/125 15/15
LAL-5012 0.3 1.2 40 2.2 1.1 26 12-15/260 14/14
LAL-5013 0.3 1.3 34 / 0.5 22.5 12/190 10/15
LAL-5014 0.3 2 37 / 0.6 20 12/150 14/10
LAL-5015 0.4 1.5 35 3.5 1.1 30 15/430 17/20
LAL-5016 0.4 1.6 35 5 0.8 30 15/500 9/13
LAL-5017 0.4 1 40 2 0.7 17 12/140 20/10
LAL-5018 0.4 2.5 17 / 1 22 9-15/50 10/14
LAL-5019 0.4 2 19 / 0.4 21 12/80 14/15
LAL-5020 0.5 1 21 / 0.4 21 12/80 12/12
LAL-5021 0.5 1 30 0.5 0.85 21 9-15/160 12/17
LAL-5022 0.5 1 35 0.3 1.8 13 12/80 14/15
LAL-5023 0.05 1 45 / 2.1 22 12/140 10/13
LAL-5024 0.5 4 19 2.5 0.7 17 12/65 10/20
LAL-5025 0.5 6 22 / 1.8 4 12/15 17/15
LAL-5026 0.6 1.2 17 / 0.8 20 12/50 20/20
LAL-5027 0.6 4.2 21 2 0.7 16 9-15/50 7/13
LAL-5028 0.7 1.5 37 / 0.6 19 12/140 20/11
LAL-5029 0.7 2.7 21 1 0.7 18 9-15/65 15/20
LAL-5030 0.7 2.7 35 1.1 0.6 25 12/230 11/12
LAL-5031 0.7 2 35 / 0.8 23 12/170 12/20
LAL-5032 0.7 3.5 19 5.5 0.7 19.5 9-15/75 9/13
LAL-5033 0.8 4 17 / 0.7 13 5-15/115 12/13
LAL-5034 0.9 1 10 / 0.7 13 12/76 14/23
LAL-5035 0.35 1.5 30 / 1 22 5/160 10/15
LAL-5036 0.75 2.5 40 1.6 1 20 12/140 10/17
LAL-5037 1.2 2.7 20 / 0.6 18 9-15/65 11/26
LAL-5038 1.4 2 16.5 / 1.4 16 5/50 20/11
LAL-5039 1.5 3.5 17 / 0.7 16.5 5-15/115 12/13
LAL-5040 1.5 6 25 / 1.5 12 5-15/50 10/11
LAL-5041 1.5MHz 3 18 / 2.2 20 5/90 9/13
LAL-5042 1.7 2.1 15 / 0.8 22 9-15/50 10/12
LAL-5043 1.7 2.1 22 / 1 20 9-15/160 15/10
LAL-5044 1.7 2.5 17 / 0.6 18 5-15/115 15/17
LAL-5045 1.8 3.8 18 / 0.8 21 9-15/110 10/12
LAL-5046 1 2 20 / 0.6 20 9-15/65 14/17
LAL-5047 1 2 35 / 1 23 12/180 11/17
LAL-5048 1 3.5 20 / 0.6 17 9-15/65 10/26
LAL-5049 1 3.5 40 1 1 18 7-15/115 9/20
LAL-5050 1 3 17 / 0.55 14 5-15/115 17/20
LAL-5051 1 3 35 0.6 0.6 25 12/230 11/12
LAL-5052 1 3 40 1.5 1 21 12/175 7/7
LAL-5053 1 4 18 1.2 0.8 20 9-15/120 12/13
LAL-5054 1 4 35 1.5 1 20 12/145 6/11
LAL-5055 1 6 17 2 1 18.5 9-15/65 7/6
LAL-5056 1 8 24 / 1.6 6.3 12/20 14/20
LAL-5057 1KHz 1.8 30 / 2.2 8 12/40 10/15
LAL-5058 1MHz 0.5 30 1 2 13 15/40 14/14
LAL-5059 1MHz 0.75 70 0.9 2.2 21 12-15/190 14/11
LAL-5060 2.2 3.2 20 / 1.7 10 12/45 7/13
LAL-5061 2.4 2.5 14 / 0.85 26 5/170 10/20
LAL-5062 2.4 2.5 16 / 1.5 14 12/25 12/17
LAL-5063 2.5 2.7 20 / 1.8 10 12/45 8/13
LAL-5064 2 3 19 / 0.9 19.5 5/95 11/10
LAL-5065 2 6 28 5 0.8 18 5-15/65 9/7
LAL-5066 2 18 17 0.7 3.5 23 12-15/230 9/13
LAL-5067 2 20 20 2 2 16 5/115 11/15
LAL-5068 2 20 20 2.5 2.2 16 12/120 11/15
LAL-5069 2 20 25 1 2.4 21 12/240 11/15
LAL-5070 3 4 17.5 / 1 18.5 5/65 10/15
LAL-5071 3 5 20 / 2 4.5 12/20 10/26
LAL-5072 4.5 6 15 / 1.1 18.5 5/70 14/14
LAL-5073 4 12 20 / 1.7 12 5-15/50 20/10
LAL-5074 5.7 5.9 16 / 2 12 12/55 11/15
LAL-5075 5 6 18 0.5 1.1 15 9-15/60 14/3
LAL-5076 5 10 19 / 2 16 5/78 26/17
LAL-5077 5 11 23 / 1.7 12 5-15/50 20/10
LAL-5078 5 15 27 / 1.9 10 5/65 11/13
LAL-5079 5 17 18 / 1.9 14 5/100 20/15
LAL-5080 5 21 18 / 2.5 10 5-15/65 10/17
LAL-5081 5KHz 0.3 30 0.5 2 10 12/40 17/13
LAL-5082 0.005 0.7 25 0.25 1.5 23 12-15/150 20/15
LAL-5083 6 12 24 0.7 2.1 11 5/65 15/15
LAL-5084 6 14 17 / 2 13 5-15/60 17/17
LAL-5085 6 18 23 2.7 1.5 17 5/90 14/14
LAL-5086 6 18 25 / 2.1 11 5-15/70 8/13
LAL-5087 6 18 26 2.5 1.9 11 12/35 14/10
LAL-5088 7 14 17 / 1.8 13 5/60 14/14
LAL-5089 8 16 20 / 1.9 13 5-15/65 15/26
LAL-5090 9.8 11.5 24 0.5 1.4 18 5/90 14/14
LAL-5091 10KHz 0.5 45 0.5 2 13 15/75 15/17
LAL-5092 10KHz 1.45 30 / 2 9 12/35 14/10
LAL-5093 10KHz 1.4 40 1 3 19 15/120 15/13
LAL-5094 10KHz 2 26 2 3 13 12/45 14/15
LAL-5095 0.01 0.5 18 / 2.9 2 15/200 14/11
LAL-5096 0.01 0.6 22 / 0.7 19 5-15/65 14/15
LAL-5097 0.01 0.6 40 0.8 1 17 5/135 14/20
LAL-5098 0.01 0.7 40 2 1 25 5/240 14/20
LAL-5099 0.01 0.7 47 1 2 22 15/150 12/17
LAL-5100 0.01 0.8 40 0.7 2 17 12/100 11/20
LAL-5101 0.01 0.25 17 0.5 1.4 21 5/160 15/26
LAL-5102 0.01 1.3 35 0.5 1.5 20 12/165 17/17
LAL-5103 0.01 1.5 26 / 3.3 10 12/45 14/10
LAL-5104 0.01 1.5 40 6 1.2 26 12-15/290 9/13
LAL-5105 0.01 1 30 0.7 1.4 29 12/380 20/15
LAL-5106 0.01 1 30 / 2 12 12/40 12/13
LAL-5107 0.01 1 33 0.7 1.3 27 12-15/260 17/17
LAL-5108 0.01 1 50 0.8 2.2 13 12/88 7/13
LAL-5109 0.01 6 18 0.6 2.1 20 6-15/100 8/10
LAL-5110 0.01 6 37 0.8 2 23 12/390 14/17
LAL-5111 0.01 8 20 0.6 1.6 18 5/70 15/10
LAL-5112 0.01 8 40 1.5 2 20 9-15/160 10/7
LAL-5113 0.01 10 25 1.8 3.2 16 5-15/125 14/10
LAL-5114 0.01 10 35 3 3.2 15 12/200 15/10
LAL-5115 0.01 20 12 1.5 3 15 5/55 14/14
LAL-5116 0.01 0.55 19 0.7 0.9 8 12/30 14/20
LAL-5117 0.01 0.55 27 0.3 1.7 19 12/105 14/14
LAL-5118 0.01 0.58 23 0.9 0.7 19 5/70 14/14
LAL-5119 0.01 0.58 23 0.6 0.7 19 12/70 14/14
LAL-5120 0.01 0.6 40 0.8 0.9 19 9-15/140 12/17
LAL-5121 0.01 0.8 60 1.5 2.1 17 12-15/160 9/13
LAL-5122 17 27 18 / 2 14 5/95 7/13
LAL-5123 0.02 1.5 20 1.2 1 17 12/70 14/14
LAL-5124 0.02 1 30 0.5 1.3 18 12/400 20/20
LAL-5125 0.02 1 30 0.8 1.3 19 9-15/140 15/20
LAL-5126 0.02 2.5 17 2.3 1.2 18 12-15/140 12/12
LAL-5127 0.02 4 25 0.7 2 18 5/160 12/13
LAL-5128 0.02 4 25 / 1.9 12 12/135 10/15
LAL-5129 0.02 6 19 0.5 2 26.5 9/200 17/17
LAL-5130 0.02 6 57 2 2 18 12/250 14/14
LAL-5131 0.02 10 30 2.5 2.5 18 9-15/150 11/13
LAL-5132 0.02 0.6 38 1.2 1 29 12-15/400 20/20
LAL-5133 0.02 0.6 67 1.5 2.2 18 12-15/140 8/13
LAL-5134 24 36 22 / 3 11 5/80 17/11
LAL-5135 25 31 24 1 2.3 24 5-15/25 14/14
LAL-5136 30KHz 0.6 20 1.2 2.2 14 15/85 14/20
LAL-5137 0.03 1.2 30 0.5 1.7 18 12/105 17/17
LAL-5138 0.03 1.3 43 3 1.1 26 12-15/300 11/13
LAL-5139 0.03 6 47 2 2.7 21 12/250 14/11
LAL-5140 0.03 0.25 47 1.5 0.4 20 9-15/160 5/8
LAL-5141 0.03 0.512 30 1 1.5 19 12/105 14/14
LAL-5142 0.03 0.93 30 0.5 1.5 19 12/115 17/26
LAL-5143 0.03 1.03 45 1.2 2 25 12/195 10/13
LAL-5144 0.04 3 16 1.6 1.3 7 3/18 14/14
LAL-5145 0.04 3 17.5 / 1.3 19 12/60 9/10
LAL-5146 0.04 3 17.5 / 1.3 19 5/60 9/10
LAL-5147 0.05 1.2 45 1 2.2 13 12/88 8/20
LAL-5148 0.05 1 18 0.5 1 16 12/70 10/15
LAL-5149 0.05 1 44 5.5 0.7 26 12-15/300 7/10
LAL-5150 0.05 2 40 1.75 3.2 24 12/200 15/13
LAL-5151 0.05 8 47 2 2 19 12/240 10/8
LAL-5152 0.05 0.45 34 0.1 1.4 18.5 12/100 15/20
LAL-5153 0.05 0.75 20 1.5 1.3 19 12/75 17/20
LAL-5154 0.05 1.25 17 2.5 1 17 12-15/75 20/20
LAL-5155 0.55 1.55 47 0.5 2.7 20 12/140 7/7
LAL-5156 0.15 0.65 21 0.5 0.8 17 12/75 20/15
LAL-5157 0.225 0.4 21 0.3 0.8 17 12/75 20/15
LAL-5158 0.35 1.55 34 / 0.5 18.5 12/170 12/12
LAL-5159 0.35 2.35 30 / 1.2 21 9-15/160 14/17
LAL-5160 0.55 1.3 15.5 / 0.55 21 5/90 26/13
LAL-5161 0.75 0.95 17 / 1.2 16.5 5/60 15/20
LAL-5162 0.75 1.75 35 1.2 1.1 21 12/145 14/20
LAL-5163 0.88 0.96 23 / 1.2 13 12/25 7/15
LAL-5164 0.902 0.928 24 0.4 1.2 13 12/25 7/15
LAL-5165 1.65 2.25 18 / 0.8 20 5/115 15/17
