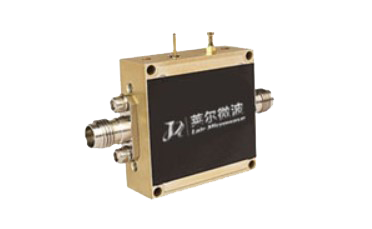

Power Amplifier

Solid-state RF power amplifier is a key component of RF front-end transmission path,

 its function is to transmit low-power RF signals amplification to obtain a large enough

RF output power, which is then fed to the antenna to radiate out. Design a good power

amplifier,It needs to take into account the gain, power output, bandwidth, amplification

efficiency, linearity, input-output impedance matching and heat dissipation facial performance.







Model LF(MHz) HF(MHz) Gain(dB) P1dB(dBm) OIP3(dBm) DC(V/mA) I/O R.L.(dB) Connector Datasheet
LAP-1001 700 2700 57 50 53(Psat) 36/3800 16 SMA(F)
LAP-1002 500 3000 52 47 50(Psat) 36/2300 14 SMA(F)
LAP-1003 20 3000 35 31.5 34(Psat) 12/1000 14 SMA(F)
LAP-1004 18000 40000 35 28 30(Psat) 24/700 11 2.92mm(F)
LAP-1005 500 2500 55 / 47(Psat) 28/4500 18 SMA(F)
LAP-1006 2000 6000 47 45 47(Psat) 28/9000 10 SMA(F)
LAP-1007 1.5 30 53 / / 28/15000 10 SMA(F)
LAP-1008 33000 37000 50 38 42.5(Psat) 28/3000 10 2.92mm(F)
LAP-1009 700 6000 55 44 48(Psat) 28/5000 14 SMA(F)
LAP-1010 700 3000 41 36 39(Psat) 29.6/800 14 SMA(F)
LAP-1011 700 6000 40 38 40(Psat) 29.6/400 13 SMA(F)
LAP-1012 18000 40000 60 41 47(Psat) 36/16000 12 WRD180C24
LAP-1013 33000 37000 65 42 47(Psat) 28/10000 10 WR28
LAP-1014 8000 12000 50 36 43(Psat) 36/3000 10 SMA(F)
LAP-1015 26500 40000 47 41 42(Psat) 28/6000 16 WR28
LAP-1016 1000 3000 55 44 50(Psat) 36/12000 10 3.5mm(F)
LAP-1017 700 6000 55 45 46(Psat) 28/700 14 SMA(F)
LAP-1018 18000 44000 42 29 32(Psat) 28/3500 11 2.92mm(F)
LAP-1019 40000 60000 60 27 31(Psat) 28/1200 10 WR19
LAP-1020 26000 34000 47 29 29.5(Psat) 12/500 10/10 2.92mm(F)
LAP-1021 10 33000 41 28 30(Psat) 12/630 14/14 2.92mm(F)
LAP-1022 6000 18000 49 / 42(Psat) 28/1500 14 SMA(F)
LAP-1023 30000 60000 50 22 27(Psat) 28/1000 14 1.85mm(F)
LAP-1024 20 520 55 50 53(Psat) 48/2000 16 SMA(F)
LAP-1025 700 6000 48 41 45(Psat) 28/3000 13 SMA(F)
LAP-1026 18000 26500 45 43 44.5(Psat) 28/6000 16 WR42
LAP-1027 32000 38000 35 31 32(Psat) 24/700 14 2.92mm(F)
LAP-1028 20 3000 47 40 43(Psat) 48/600 13 SMA(F)
LAP-1029 2000 18000 52 43 45(Psat) 28/8000 14 SMA(F)
LAP-1030 2400 2700 31 / 38(Psat) 28/500 10 SMA(F)
LAP-1031 800 18000 40 31 33(Psat) 24/800 18 SMA(F)
LAP-1032 100 22000 36 28 30(Psat) 24/350 14/11 SMA(F)
LAP-1033 2000 18000 52 / 40(Psat) 28/2300 10 SMA(F)
LAP-1034 6000 18000 45 / 40(Psat) 36/1500 10 SMA(F)
LAP-1035 2000 6000 50 45 47(Psat) 28/6000 13 SMA(F)
LAP-1036 20 3000 43 38 40(Psat) 28/850 13 SMA(F)
LAP-1037 18000 40000 50 39 42(Psat) 28/5600 10 2.92mm(F)
LAP-1038 50 500 53 / 53(Psat) 48/8500 14 SMA(F)
LAP-1039 18000 26500 50 46.5 48(Psat) 28/11000 16 WR42
LAP-1040 2400 2500 28 36 / 28/500 16 SMA(F)
LAP-1041 10 23000 10 25 29.5(Psat) 10/400 14 SMA(F)
LAP-1042 18000 40000 50 42 44(Psat) 28/10000 10 WRD180C24
LAP-1043 1000 18000 33 31 33(Psat) 24/800 18 2.92mm(F)
LAP-1044 18000 40000 45 / 42(Psat) 28/2500 10 2.92mm(F)
LAP-1045 18000 26500 45 / 42(Psat) 28/2500 18 2.92mm(F)
LAP-1046 26500 40000 55 46 49(Psat) 36/16000 10 WR28
LAP-1047 36500 40000 50 43 45(Psat) 28/8500 14 WR28
LAP-1048 26000 40000 45 38 39(Psat) 28/3000 10 2.92mm(F)
LAP-1049 100 3000 41 36 41(Psat) 24~28/2200 10 SMA(F)
LAP-1050 20 1000 50 / 50(Psat) 28/2100 14 SMA(F)
LAP-1051 25000 40000 54 / 34.5(Psat) 12/2100 16 2.92mm(F)
LAP-1052 9000 10500 43 / 42(Psat) 28/500 16 SMA(F)
LAP-1053 20 6000 35 30 34(Psat) 28/400 14 SMA(F)
LAP-1054 700 6000 45 40 42(Psat) 28/500 13 SMA(F)
LAP-1055 200 2500 55 45 48(Psat) 36/8000 10 SMA(F)
LAP-1056 40 8000 12 25.5 31(Psat) 15/450 13/13 SMA(F)
LAP-1057 6000 18000 17.5 24 26(Psat) 12/330 14/7 SMA(F)
LAP-1058 40 30000 14 20 27(Psat) 8/240 14/14 2.92mm(F)
LAP-1059 500 22000 12 22 31(Psat) 11/280 13/16 SMA(F)
LAP-1060 800 4200 50 41 46(Psat) 28/15000 14 SMA(F)
LAP-1061 700 6000 40 37 39(Psat) 28/650 13 SMA(F)
LAP-1062 20 3000 52 45.5 47(Psat) 48/1000 14 SMA(F)
LAP-1063 18000 28000 38 32 33(Psat) 24/560 14 2.92mm(F)
LAP-1064 2000 6000 50 42.5 44(Psat) 36/300 18 SMA(F)
LAP-1065 20000 47000 35 29 29(Psat) 24/400 13 2.4mm(F)
LAP-1066 2100 2380 50 43 47(Psat) 28/1200 14 SMA(F)
LAP-1067 20 22000 30 25.5 28(Psat) 12/650 16/10 SMA(F)
LAP-1068 800 2300 31 31 33(Psat) 15/500 13 SMA(F)
LAP-1069 800 2300 22 29 30(Psat) 15/350 16/16 SMA(F)
LAP-1070 500 6000 38 30 32(Psat) 12/270 11 SMA(F)
LAP-1071 700 3000 42 36 38(Psat) 24/720 14 SMA(F)
LAP-1072 160 163 51 45 46(Psat) 28/800 21 SMA(F)
LAP-1073 6000 10000 48 33 34(Psat) 31.5/420 16/12 SMA(F)
LAP-1074 30 2500 38 34 38(Psat) 28/650 13 SMA(F)
LAP-1075 100 3000 41 36 41(Psat) 48/1200 10 SMA(F)
LAP-1076 20 6000 38 31 34(Psat) 12/450 14 SMA(F)
LAP-1077 18000 28000 35 34 35(Psat) 24/1100 16 2.92mm(F)
LAP-1078 20 3000 35 31.5 34(Psat) 12/1000 14 SMA(F)
LAP-1079 1000 6000 36 37 38(Psat) 28/800 12 SMA(F)
LAP-1080 4400 5000 36 38 40(Psat) 12/500 21 SMA(F)
LAP-1081 700 6000 40 35 39(Psat) 28/650 13 SMA(F)
LAP-1082 100 22000 33 31 33(Psat) 24/800 18 2.92mm(F)
LAP-1083 18000 40000 40 25 27(Psat) 10/900 10 2.92mm(F)
LAP-1084 19200 20200 58 29 30(Psat) 12/550 13/11 SMA(F)
LAP-1085 32000 38000 40 36 37.5(Psat) 24/3500 10/10 2.92mm(F)
LAP-1086 32000 38000 38 33 34(Psat) 24/1000 14 2.92mm(F)
LAP-1087 2000 22000 50 34 38(Psat) 36/1400 16 SMA(F)
LAP-1088 6000 18000 70 / 48(Psat) 28/5200 10 SMA(F)
LAP-1089 6000 18000 60 40 44(Psat) 48/5200 10 SMA(F)
LAP-1090 6000 18000 46 / 38.5(Psat) 28/1500 10 SMA(F)
LAP-1091 6000 18000 37 30 33(Psat) 12/1000 10 SMA(F)
LAP-1092 6000 12000 23 27 30(Psat) 24/150 11/11 SMA(F)
LAP-1093 700 6000 34 44 45(Psat) 28/2500 14 SMA(F)
LAP-1094 3000 6000 40 37 39(Psat) 28/650 13 SMA(F)
LAP-1095 10 1000 25 33 36(Psat) 12/720 12 SMA(F)
LAP-1096 20 22000 30 25 28(Psat) 12/650 16/10 SMA(F)
LAP-1097 20 540 45 45 46(Psat) 24/800 21 SMA(F)
LAP-1098 900 2500 31 36 37(Psat) 15/550 21 SMA(F)
LAP-1099 700 6000 35 35 40(Psat) 28/350 13 SMA(F)
LAP-1100 700 3000 41 34 39(Psat) 24/750 14 SMA(F)
LAP-1101 700 6000 45 42 44(Psat) 28/500 18 SMA(F)
LAP-1102 500 6000 42 35 41(Psat) 28/600 11 SMA(F)
LAP-1103 500 6000 31 30 31(Psat) 12/280 11 SMA(F)
LAP-1104 80 1000 56 49 53(Psat) 28/3500 14 SMA(F)
LAP-1105 18000 26500 60 49.5 51(Psat) 36/18000 14 WR42
LAP-2001 800 2000 33 30 / 9~15/220 13/14 SMA(F)
LAP-2002 1000 40000 40 18 / 8~15/600 12/12 2.92mm(F)
LAP-2003 2000 6000 20 31 / 9~15/370 22/8 SMA(F)
LAP-2004 2000 6000 37 31 / 9~15/420 12/18 SMA(F)
LAP-2005 6000 18000 22 33 / 9~15/1150 14/17 SMA(F)
LAP-2006 6000 18000 38 33 / 9~15/1250 13/17 SMA(F)
LAP-2007 8000 12000 21 33 / 9~15/550 20/10 SMA(F)
LAP-2008 8000 12000 40 31 / 9~15/310 15/11 SMA(F)
LAP-2009 12000 18000 22 36 / 9~15/1400 9/8 SMA(F)
LAP-2010 12000 18000 42 36 / 9~15/1550 14/8 SMA(F)
LAP-2011 15000 43000 20 29 / 6~15/900 14/16 2.92mm(F)
LAP-2012 15000 43000 38 29 / 6~15/1100 16/16 2.92mm(F)
LAP-2013 17000 29000 30 28 / 9~15/900 15/24 2.92mm(F)
LAP-2014 18000 43000 35 29 / 6~15/1050 15/16 2.92mm(F)
LAP-2015 20000 50000 23 24 / 5~15/500 12/13 2.4mm(F)
LAP-2016 26000 34000 25 33 / 7~15/1300 14/11 2.92mm(F)
LAP-2017 27500 30500 19 33 / 7~15/900 5/10 2.92mm(F)
LAP-2018 31000 36000 22 31 / 7~15/1000 11/13 2.92mm(F)
LAP-2019 24000 30000 30 34 35 7~12/2700 12/12 2.92 mm(F)
LAP-2020 26000 40000 32 31 / 6~10/2500 12/12 2.92 mm(F)
LAP-2021 18000 40000 33 32 / 12/2000 12/12 2.92 mm(F)
LAP-2022 1000 40000 30 18 20 8~15/450 12/12 2.92 mm(F)
LAP-2023 1800 4000 45 / 42 28~30/1500 12/12 SMA(F)
LAP-2024 6000 18000 33 35 36 9~15/2300 12/12 SMA(F)
LAP-2025 6000 20000 34 / 38 19~30/1400 12/12 SMA(F)
LAP-2026 12000 18000 36 / 40 29~30/3000 14/12 SMA(F)
LAP-2027 24000 28000 40 37 38 7~10/4000 15/15 2.92mm(F)
LAP-2028 27500 31000 20 / 41 23~26/1000 10/10 2.92mm(F)
LAP-2029 31000 37000 20 / 41 29~36/2000 8/8 2.92mm(F)
LAP-2030 6000 20000 34 / 38 AC220 12/12 SMA(F)
LAP-2031 20000 50000 35 27 29 AC100~220 15/15 2.4mm(F)
LAP-2032 92000 96000 16 / 25 19/110 12/12 WR-10
LAP-2033 88000 100000 14 19 20 6~8/335 12/12 WR-10
LAP-2034 75000 110000 13 14 15 6~12/110 12/12 WR-10
LAP-2035 75000 110000 26 14 15 6~12/220 12/12 WR-10
LAP-2036 88000 115000 16 / 22 17~18/130 12/12 WR-10
LAP-2037 24000 24000 32 / 40 23~26/1000 12/12 2.92mm(F)
LAP-2038 28000 28000 32 / 41 23~28/1000 12/12 2.92mm(F)
LAP-2039 4900 5000 43 / 47(Psat) 29~32/1800 12/12 SMA(F)/N(F)
LAP-3001 40000 67000 39 27 32(Psat) 17/970 7/8 1.85mm(F)
LAP-3002 300 8000 38 29 30(Psat) 12/450 10/10 SMA(F)
LAP-4001 30 3000 27 30 39 11.5~13/220 12/11 SMA(F)
LAP-4002 30 3000 38 30 39 11.5~13/510 11/11 SMA(F)
LAP-4003 400 6000 36 28 35 15/530 10/7 SMA(F)
LAP-4004 100 8000 40 24 33 9~15/450 7/7 SMA(F)
LAP-4005 2000 8000 32 30 39 15/1500 10/10 SMA(F)
LAP-4006 500 10000 32 24 33 10~12/375 10/10 SMA(F)
LAP-4007 100 12000 30 24 33 9~15/400 10/10 SMA(F)
LAP-4008 6000 8000 40 24 33 9~15/460 9/9 SMA(F)
LAP-4009 6000 18000 35 27 36 9~15/1200 9/9 SMA(F)
LAP-4010 6000 18000 30 33 42 15/2400 9/9 SMA(F)
LAP-4011 300 18000 37 30.5 42 14.5~18/800 9/9 SMA(F)
LAP-4012 2000 18000 15 28 36 12/1200 10/7 SMA(F)
LAP-4013 2000 18000 20 27 / 15/1000 9/9 SMA(F)
LAP-4014 2000 18000 40 30 / 15/1800 9/9 SMA(F)
LAP-4015 1000 18000 30 24 33 12/1200 9/9 SMA(F)
LAP-4016 100 18000 30 24 33 12/1000 9/9 SMA(F)
LAP-4017 100 20000 30 24 33 15/1350 7/7 SMA(F)
LAP-4018 100 20000 20 24 33 15/1200 7/7 SMA(F)
LAP-4019 200 20000 32 30 38 15/1000 7/7 SMA(F)
LAP-4020 2000 20000 30 27 36 15/3000 9/9 SMA(F)
LAP-4021 100 22000 33 29 36 24/850 10/10 SMA(F)
LAP-4022 18000 40000 25 23 33 15/1600 7/7 2.92mm(F)
LAP-4023 18000 40000 25 27 33 15/2300 7/7 2.92mm(F)
LAP-4024 30 500 17 30 40 11~13/320 7/7 SMA(F)
LAP-4025 100 1000 30 30 43 11~13/375 11/11 SMA(F)
LAP-4026 600 1600 40 30 45 11~13/500 11/11 SMA(F)
LAP-4027 500 2000 32 30 39 15/1100 10/10 SMA(F)
LAP-4028 500 2000 32 33 42 15/2400 10/10 SMA(F)
LAP-4029 2000 3000 33 34 45 11.5~13/1000 12/12 SMA(F)
LAP-4030 2200 2400 40 40 / 11.5~12.5/2800 10/10 SMA(F)
LAP-4031 2000 2800 30 35 / 11.5~12.5/1000 11/10 SMA(F)
LAP-4032 2000 4000 35 27 36 9~15/800 10/10 SMA(F)
LAP-4033 2000 6000 30 30 39 15/1500 10/10 SMA(F)
LAP-4034 2000 6000 35 27 36 9~15/800 10/10 SMA(F)
LAP-4035 4000 11000 35 30 40 15/1500 10/10 SMA(F)
LAP-4036 8000 10000 38 35 43 8~10/3300 10/7 SMA(F)
LAP-4037 8000 12000 22 30 38 12~15/600 10/10 SMA(F)
LAP-4038 8000 12000 33 30 38 12~15/600 10/10 SMA(F)
LAP-4039 5000 13000 30 27 37 9~15/800 10/10 SMA(F)
LAP-4040 5000 13000 35 33 41 15/1800 10/10 SMA(F)
LAP-4041 6000 12000 40 20 29 9~15/370 9/9 SMA(F)
LAP-4042 6000 12000 30 24 33 12/425 10/10 SMA(F)
LAP-4043 6000 12000 30 27 36 12/900 9/9 SMA(F)
LAP-4044 6000 12000 30 30 39 9~15/1200 9/9 SMA(F)
LAP-4045 6000 12000 35 34 42 15/2400 9/9 SMA(F)
LAP-4046 12000 17500 32 24 32 12/450 7/7 SMA(F)
LAP-4047 13000 15000 45 33 42 7/1300 10/10 SMA(F)
LAP-4048 12000 18000 30 33 43 15/2400 9/9 SMA(F)
LAP-4049 12000 18000 40 24 33 9~15/460 9/9 SMA(F)
LAP-4050 12000 18000 30 24 33 9~15/440 9/9 SMA(F)
LAP-4051 12000 18000 25 27 36 9~15/1200 9/9 SMA(F)
LAP-4052 12000 18000 41 30 40 10~15/1200 7/7 SMA(F)
LAP-4053 12000 18000 25 30 39 15/1450 9/9 SMA(F)
LAP-4054 14000 25000 27 21 30 12/330 7/7 2.92mm(F)
LAP-4055 17000 20000 28 28 / 12/1000 10/7 SMA(F)
LAP-4056 17000 22000 35 31 40 10/880 9/9 SMA(F)
LAP-4057 17500 21500 40 36 45 9~12/3500 7/7 SMA(F)
LAP-4058 23000 28000 24 24 / 12/600 10/7 2.92mm(F)
LAP-4059 22000 28000 20 30 40 11~13/1200 7/7 2.92mm(F)
LAP-4060 18000 26500 30 28 35 6.5~7.5/1400 7/7 2.92mm(F)
LAP-4061 18000 26500 33 31 38 8~12/1800 12/11 2.92mm(F)
LAP-4062 18000 26500 30 33 42 15/2800 10/10 2.92mm(F)
LAP-4063 25000 31000 30 34(Psat) / 12/400 10/7 2.92mm(F)
LAP-4064 26000 31000 30 24 30 12/300 7/7 2.92mm(F)
LAP-4065 26000 31000 26 29 37 7/1000 10/10 2.92mm(F)
LAP-4066 32000 36000 30 33(Psat) / 12/2400 10/7 2.92mm(F)
LAP-4067 32000 36000 14 34 42 9~12/2300 7/6 2.92mm(F)
LAP-4068 33000 36000 30 30(Psat) / 15/4000 7/7 2.92mm(F)
LAP-4069 26500 40000 25 17 / 9~15/435 7/7 2.92mm(F)
LAP-4070 26500 40000 35 20 30 11~15/200 7/7 2.92mm(F)
LAP-4071 26500 40000 25 24 / 15/2200 7/7 2.92mm(F)
LAP-4072 26000 40000 30 25 / 6/1500 10/10 WR28
LAP-4073 26000 40000 25 27.5(Psat) / 12~15/2650 7/7 2.92mm(F)
LAP-4074 26500 40000 30 30(Psat) / 12~15/4500 9/9 2.92mm(F)
LAP-5001 100 3000 43 18 35 12/190 12/12 SMA(F)
LAP-5002 50 3000 50 14 28 12/155 18/18 SMA(F)
LAP-5003 6000 12000 19 19 26 12/105 13/10 SMA(F)
LAP-5004 100 8000 30 10 23 12/120 18/13 SMA(F)
LAP-5005 10 20000 17 22.5 32 12/230 10/14 SMA(F)
LAP-5006 50 6000 37 18 33 12/180 18/14 SMA(F)
LAP-5007 30 9000 40 14 26 12/150 21/18 SMA(F)
LAP-5008 30 2700 43 25 35 12/300 16/21 SMA(F)
LAP-5009 4000 6000 27 30 41 9/850 11/9 SMA(F)
LAP-5010 4500 9000 27 30 39 9/850 14/10 SMA(F)
LAP-5011 4600 4900 27 30 39 9/850 11/9 SMA(F)
LAP-5012 4000 12000 18 16 27 12/45 8/16 SMA(F)
LAP-5013 8000 16000 13 16 27 12/45 14/16 SMA(F)
LAP-5014 5000 18000 13 17 25 5/145 18/18 SMA(F)
LAP-5015 2000 20000 20 12 26 5/100 21/14 SMA(F)
LAP-5016 5000 20000 10 17 25 5/130 18/18 SMA(F)
LAP-5017 20000 36000 24 11 21 5/80 16/9 2.92mm(F)
LAP-5018 5000 12000 11 17 25 5/130 18/16 SMA(F)
LAP-5019 6000 12000 13 17 25 5/145 18/14 SMA(F)
LAP-5020 800 1000 18.5 27 37 5/250 45544 SMA(F)
LAP-5021 50 1000 20 20 36 12/85 21/18 SMA(F)
LAP-5022 5 1000 32 8.5 19 5/25 9/14 SMA(F)
LAP-5023 10 1500 40 20 32 12/135 18/16 SMA(F)
LAP-5024 100 1000 45 20 34 12/135 14/14 SMA(F)
LAP-5025 5 2400 20 9 18 3/37 13/7 SMA(F)
LAP-5026 50 2500 17 18.5 32.5 12/85 14/14 SMA(F)
LAP-5027 5 2000 21.5 7.8 18.5 5/27 13/10 SMA(F)
LAP-5028 50 3000 21 8 18 3/28 11/9 SMA(F)
LAP-5029 100 2100 30 18 32 12/130 14/21 SMA(F)
LAP-5030 50 3000 11.5 17.5 32.5 12/80 21/18 SMA(F)
LAP-5031 30 3000 13 25 38 12/160 13/14 SMA(F)
LAP-5032 0.01 3000 13 12 26 15/47 21/14 SMA(F)
LAP-5033 10 3000 18 20 33 12/115 12/10 SMA(F)
LAP-5034 1 3000 18 22 35 15/110 14/10 SMA(F)
LAP-5035 50 3000 24 12 24 12/100 16/14 SMA(F)
LAP-5036 10 4000 18 18.5 34 12/80 14/10 SMA(F)
LAP-5037 100 5000 15 19 35 12/85 14/14 SMA(F)
LAP-5038 60 4000 20 20 35 5/75 14/14 SMA(F)
LAP-5039 100 4000 33 18.7 34 12/130 12/13 SMA(F)
LAP-5040 50 4200 34 19 33 12/130 13/11 SMA(F)
LAP-5041 70 5500 15 19 35 5/80 14/14 SMA(F)
LAP-5042 100 6000 15 12.5 26 12/40 10/8 SMA(F)
LAP-5043 1000 6000 13 12 23 12/45 11/14 SMA(F)
LAP-5044 1000 6000 23 15 27 12/105 16/13 SMA(F)
LAP-5045 100 6000 34 19 32 12/125 10/10 SMA(F)
LAP-5046 50 6000 27 16.9 31 12/130 12/11 SMA(F)
LAP-5047 0.3 6500 37 17 29 12/120 12/11 SMA(F)
LAP-5048 100 7000 24 16 28 12/130 18/11 SMA(F)
LAP-5049 0.1 7000 35 19 31 12/130 12/12 SMA(F)
LAP-5050 30 700 30 20 33 5/100 10/8 SMA(F)
LAP-5051 20 700 33 20 33 12/100 14/21 SMA(F)
LAP-5052 0.05 8000 10 10 25 12/40 12/13 SMA(F)
LAP-5053 50 9000 32 15.3 28.1 12/110 12/14 SMA(F)
LAP-5054 100 10000 16 13 28 12/50 12/12 SMA(F)
LAP-5055 0.1 10000 27 13 26 12/110 12/12 SMA(F)
LAP-5056 10 1000 25 20 33 15/125 12/11 SMA(F)
LAP-5057 5 600 16 18 32 15/60 14/16 SMA(F)
LAP-5058 10 300 25 20 31 12/11 15/50 SMA(F)
LAP-5059 3 600 13 22 34 15/85 14/14 SMA(F)
LAP-5060 50 1500 40 24 37 12/100 21/13 SMA(F)
LAP-5061 300 2500 24 23 34 12/200 14/18 SMA(F)
LAP-5062 50 2500 30 25 38 12/230 21/18 SMA(F)
LAP-5063 30 3000 32 25 38 12/220 14/14 SMA(F)
LAP-5064 50 4000 27 20 35 12/160 13/11 SMA(F)
LAP-5065 50 4500 33 21 35 12/160 13/10 SMA(F)
LAP-5066 100 5000 30 20 34 12/170 18/8 SMA(F)
LAP-5067 1000 22000 13 22 32 12/225 12/12 SMA(F)
LAP-5068 225 275 25 28 41 5/470 14/26 SMA(F)
LAP-5069 40 850 17 28 45 9/330 10/10 SMA(F)
LAP-5070 400 470 14 30 44 12/360 18/21 SMA(F)
LAP-5071 10 1000 27 26 40 12/350 14/14 SMA(F)
LAP-5072 400 1200 16 28 45 9/330 18/21 SMA(F)
LAP-5073 800 1000 15 29 47 5/700 21 SMA(F)
LAP-5074 800 1000 30 30 47 5/700 18 SMA(F)
LAP-5075 700 1300 16 27 44 9/330 21/21 SMA(F)
LAP-5076 1500 1700 12 30 43 5/750 16/16 SMA(F)
LAP-5077 1500 2000 25 30 39 5/530 16/11 SMA(F)
LAP-5078 1750 1950 12 30 47 5/750 12/13 SMA(F)
LAP-5079 1600 2400 26 27 42 5/550 14/12 SMA(F)
LAP-5080 2000 3000 24 28.5 42 5/480 12/10 SMA(F)
LAP-5081 3000 4000 20 27 39 5/430 21/9 SMA(F)
LAP-5082 4850 5450 20 27 39 5/900 13 SMA(F)
LAP-5083 5150 5350 20 27.3 40 5/900 13 SMA(F)
LAP-5084 2000 6000 33 30 40 28/330 10/7 SMA(F)
LAP-5085 500 1500 30 33 48 15/900 13/10 SMA(F)
LAP-5086 100 1000 33 33 46 15/1000 13/18 SMA(F)
LAP-5087 1 1000 40 30 43 12/360 21/21 SMA(F)
LAP-5088 2 1000 40 30 45 12/420 21/21 SMA(F)
LAP-5089 50 1500 36 30 43 12/430 21/21 SMA(F)
LAP-5090 1500 1700 33 30 40 12/800 14/7 SMA(F)
LAP-5091 100 2000 30 30 48 15/900 13/10 SMA(F)
LAP-5092 30 2200 30 30 43 12/430 13/21 SMA(F)
LAP-5093 2300 2600 30 30 40 12/1200 7/14 SMA(F)
LAP-5094 2400 2500 28 33 42 12/800 21/10 SMA(F)
LAP-5095 2400 2500 30 33 43 12/1200 7/14 SMA(F)
LAP-5096 3200 4000 23 32 42 5/1300 11/18 SMA(F)
LAP-5097 3200 4000 35 32 42 5/1300 14/14 SMA(F)
LAP-5098 20 1000 40 30 47 24/630 14/14 SMA(F)
LAP-5099 4800 6000 30 30 39 12/550 16/7 SMA(F)
LAP-5100 5000 6000 27 30 40 12/920 10/7 SMA(F)
LAP-5101 150 450 21 30 45 24/500 / SMA(F)
LAP-5102 270 470 35 30 45 9/1650 18/6 SMA(F)
LAP-5103 300 600 40 38 46 24/880 16/16 SMA(F)
LAP-5104 700 900 42 37 47 9/1600 21/10 SMA(F)
LAP-5105 750 950 40 37 47 9/1650 10/10 SMA(F)
LAP-5106 800 960 36 33 42 12/1100 14/21 SMA(F)
LAP-5107 902 928 40 37 47 9/1650 18/14 SMA(F)
LAP-5108 850 1000 40 37 47 9/1650 18/14 SMA(F)
LAP-5109 750 1150 28 30 40 12/1000 8/14 SMA(F)
LAP-5110 1300 1500 32 31.7 41 12/1000 18/13 SMA(F)
LAP-5111 2100 2300 33 33 45 9/1350 12/10 SMA(F)
LAP-5112 10 1000 18 27 39 15/210 16/16 SMA(F)
LAP-5113 20 6000 50 / / 28/3000 14/12 SMA(F)
LAP-5114 2000 6000 55 43 / 28/3500 18/12 SMA(F)
LAP-5115 2000 12000 40 37 / 28/1800 14/14 SMA(F)
LAP-5116 130 180 33 / 47 12/4000 18/7 SMA(F)
LAP-5117 30 512 30 / / 28/1000 26 SMA(F)
LAP-5118 30 600 30 / / 12/290 21 SMA(F)
LAP-5119 440 530 38.5 / / 12/2800 11/5 SMA(F)
LAP-5120 760 880 39.5 / / 12/3200 10/8 SMA(F)
LAP-5121 750 950 40 / / 12/2750 16 SMA(F)
LAP-5122 850 950 40 / 48 12/2750 16 SMA(F)
LAP-5123 880 940 30 / 50 12/2500 14 SMA(F)
LAP-5124 902 928 40 / 50 12/2500 16 SMA(F)
LAP-5125 1800 2000 30 40 48 28/1550 21/16 SMA(F)
LAP-5126 500 3000 46 40 51 12/5800 12/12 SMA(F)
LAP-5127 20 150 40 40 / 28/900 14 SMA(F)
LAP-5128 20 4000 40 / 44 28/900 14/9 SMA(F)
LAP-5129 30 1000 33 40 / 28/1000 14 SMA(F)
LAP-5130 1000 8000 40 / 44 28/1100 11 SMA(F)
LAP-5131 1000 1400 50 / 40 24/1700 14 SMA(F)
LAP-5132 2000 6000 43 / 46 32/2300 21 SMA(F)
LAP-5133 2000 6500 43 / 47 32/2100 14 SMA(F)
LAP-5134 4000 7000 50 / 50 24/1500 13/7 SMA(F)
LAP-5135 13500 15500 43 / 45 28/2800 14 SMA(F)
LAP-5136 700 850 43 40 49 12/2750 18 SMA(F)
LAP-5137 700 900 43 40 49 12/2700 18 SMA(F)
LAP-5138 800 850 50 / 44 15/2100 21 SMA(F)
LAP-5139 750 950 43 40 49 12/2500 18 SMA(F)
LAP-5140 760 960 40 40 50 12/2750 18 SMA(F)
LAP-5141 902 928 40 40 50 12/2850 21 SMA(F)
LAP-5142 900 950 40 40 50 12/2750 21 SMA(F)

    ABOUT US

    PRODUCTS

    SUPPORT

    NEWS

    CONTACT US

    Copyright Reserved © 2024 Suzhou Lair Microwave Inc.   苏ICP备18011415号-1  Technical Support:info@lairmw.com
