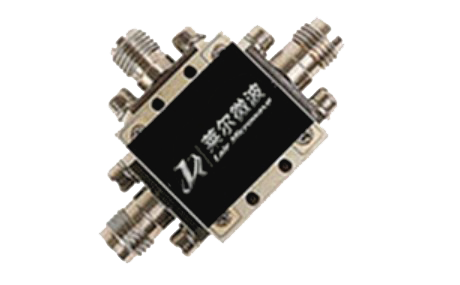

Frequency Mixer

Microwave mixer is one of the key components of communication systems and other microwave measurement systems, it affects and determines the bandwidth and dynamic range of the system. Generally, the frequency range, conversion loss and linearity of the mixer determine the special application range of this three-port device. As the name suggests, a mixer mixes two incoming signals to produce the sum of their frequencies or the difference between them. When a mixer is used to produce an output frequency higher than the input signal (the two frequencies are added together), it is called up-conversion. When a mixer is used to produce an output frequency lower than the input signal, it is called downconversion.









Model Frequency(GHz) LO Fre(GHz) IF Fre(GHz) Frequency Conversion Loss(dB) LO Power(dBm) IIP3(dBm) Datasheet
LFC-2001 6-18 6-18 DC-5 9 15 21
LFC-2002 18-50 18-50 DC-20 9 18 20
LFC-2003 7-34 7-34 DC-8 11 16 20
LFC-2004 14-30 14-30 DC-8 9 13 19
LFC-2005 15-36 20-50 DC-24 10 16 18
LFC-2006 18-42 18-42 DC-18 9 13 21
LFC-2007 2-6 2-6 DC-2.5 7.5 14 18
LFC-2008 3-10 3-10 DC-4 9 17 25
LFC-2009 2-18 2-18 DC-3 10 14 18
LFC-2010 10-20 10-20 DC-6 9 13 19
LFC-2011 6-26.5 6-26.5 DC-8 9 13 20
LFC-2012 75-110 75-110 DC-20 13 15 6(IP1dB)
LFC-2013 18-50 22-48 DC-20 10 / 9(IP1dB)
LFC-2014 2-4 1.2-1.8 DC-3 6 / 10(IP1dB)
LFC-2015 3-5 4-7 DC-3 9 / 12(IP1dB)
LFC-2016 3-5 4-7 DC-3 -10 / -13(IP1dB)
LFC-2023 10.7-14.5 15-21 0.8-3 10 / 12(IP1dB)
LFC-2024 10.7-14.5 15-21 0.8-3 18 / 12(IP1dB)
LFC-2017 18-30 18-30 DC-6 9 / 5(IP1dB)
LFC-2018 18-30 18-30 DC-6 -10 / -15(IP1dB)
LFC-2019 20-40 20-40 DC-14 10 / 5(IP1dB)
LFC-2020 20-40 20-40 DC-14 -3 / -10(IP1dB)
LFC-2021 24-44 24-44 0.01-14 -10 / -15(IP1dB)
LFC-2022 18-50 20-50 DC-20 -10 / -20(IP1dB)
LFC-5001 0.22-0.3 0.22-0.3 DC-0.08 7.5 17 26
LFC-5002 0.5MHz-0.5 0.5MHz-0.5 DC-0.5 6.5 10 15
LFC-5003 0.002-0.5 0.002-0.5 DC-0.5 6 7 16
LFC-5004 0.002-0.5 0.002-0.5 DC-0.5 6 10 16
LFC-5005 0.005-1 0.005-1 DC-1 7 7 20
LFC-5006 0.02-1 0.02-1 DC-1 7 7 17
LFC-5007 0.02-1 0.02-1 DC-1 6.5 10 20
LFC-5008 0.01-1 0.01-1 DC-0.8 7.2 4 16
LFC-5009 0.005-1 0.005-1 DC-1 7 13 22
LFC-5010 0.04-1.2 0.04-1.2 DC-0.8 6 7 17
LFC-5011 0.01-1.2 0.01-1.2 DC-1.2 8 13 22
LFC-5012 0.005-1.5 0.005-1.5 DC-1 7.5 7 15
LFC-5013 0.01-1.5 0.01-1.5 DC-1.5 7 17 26
LFC-5014 0.1-1.7 0.1-1.7 0.05-1.5 8.5 17 25
LFC-5015 0.35-2 0.35-2 DC-0.4 7 7 13
LFC-5016 1.5-2 1.5-2 DC-0.3 6 7 14
LFC-5017 0.01-2 0.01-2 DC-2 7 17 27
LFC-5018 0.01-2.2 0.01-2.2 DC-1.8 6.5 17 25
LFC-5019 2.05-2.35 2.05-2.35 DC-0.3 7.2 13 26
LFC-5020 1.4-2.5 1.4-2.5 DC-0.5 7.5 7 11
LFC-5021 0.1-2.5 0.1-2.5 DC-0.75 6.5 13 18
LFC-5022 0.08-2.5 0.08-2.5 0.001-1 8 17 30
LFC-5023 0.005-2.5 0.005-2.5 0.005-1.5 8.5 13 18
LFC-5024 0.01-2.5 0.01-2.5 0.01-2.5 7.2 17 27.5
LFC-5025 0.04-2.5 0.04-2.5 DC-1 8 13 26
LFC-5026 0.001-2.7 0.001-2.7 0.001-2 7 10 20
LFC-5027 0.001-2.7 0.001-2.7 0.001-2 7 17 27.8
LFC-5028 0.005-3.5 0.005-3.5 0.005-2.5 8 13 18
LFC-5029 1.5-3.6 1.5-3.6 DC-0.6 8 17 25
LFC-5030 0.005-4.2 0.005-4.2 0.005-3.5 9.8 13 17
LFC-5031 0.8-4.2 0.8-4.2 DC-0.8 9 13 19
LFC-5032 1.5-4.5 1.5-4.5 DC-1.5 8.5 13 19
LFC-5033 2.5-6 2.5-6 DC-1.5 8.7 17 25
LFC-5034 2.5-6 2.5-6 DC-1.5 9.5 13 19
LFC-5035 4.5-9 4.5-9 DC-2.5 8.5 13 21
LFC-5036 9-15 9-15 DC-2.5 8 13 17
LFC-5037 2.25-18 2.25-18 DC-3 11 13 20
LFC-5038 3-10 3-10 DC-4 9 17 23
LFC-5039 5.5-14 5.5-14 DC-6 7 15 24
LFC-5040 6-26 6-26 DC-8 10 13 22
LFC-5041 7-14 7-14 DC-5 8 13 22
LFC-5042 7-34 7-34 DC-8 12 15 22
LFC-5043 11-20 11-20 DC-6 8 13 18
LFC-5044 14-26 14-26 DC-8 9 13 20
LFC-5045 16-30 16-30 DC-8 9 13 21
LFC-5046 24-32 24-32 DC-8 10.5 13 18
LFC-5047 10-40 10-40 DC-15 9 15 20
LFC-5048 5-12 5-12 DC-4 8.5 10 16
LFC-5049 0.7-2 0.7-2 DC-0.5 9 13 17
LFC-5050 1.5-4.5 1.5-4.5 DC-1.5 8.5 13 19
LFC-5051 4.5-9 4.5-9 DC-2.5 8.5 13 21
LFC-5052 9-15 9-15 DC-2.5 8.5 13 17
LFC-5053 6-14 6-14 DC-5 6.5 13 16
LFC-5054 11-21 11-21 DC-6 6 13 16
LFC-5055 16-26 16-26 DC-9 7 13 17
LFC-5056 20-32 20-32 DC-10 7 13 18
