RF Cable Assemblies

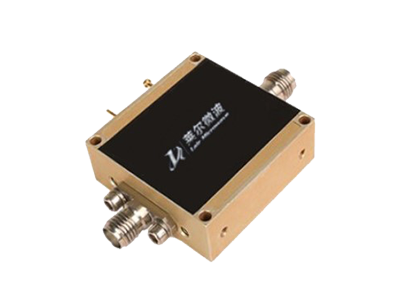

Frequency Multiplier

Frequency Multiplier A circuit in which the output signal frequency is an

integral multiple of the input signal frequency. Designers can economically

raise lower frequencies to higher frequencies without creating measurable

additive phase noise. Frequency doubler is widely used, such as the transmitter

using frequency doubler can make the main oscillator oscillate at a lower frequency

to improve the frequency stability; Frequency modulation equipment uses frequency

multiplier to increase frequency offset. In phase keying communicator, frequency

                                              multiplier is an important component of carrier recovery circuit.










Model FIN(GHz) FOUT(GHz) Octaves Number PIN(dBm) POUT(dBm) I/O R.L.(dB) DC(V/mA) Datasheet
LMA-1001 2-3 6-9 3 +7~+11 / / /
LMA-2001 4-5 16-20 4 -5~+5 20 12/12 6~15/300
LMA-2002 4.75-10.5 19-42 4 +5~+15 20 12/12 6~12/530
LMA-2003 4.65-11 18.6-44 4 +3~+8 16 12/12 6~12/530
LMA-2004 10-20 20-40 2 -4~+6 13 18/16 6~10/110
LMA-2005 5-12.5 20-50 4 3 23 12/12 5~12/580
LMA-2006 6-8 24-32 4 -10~+8 23 13/7 6~15/350
LMA-2007 12-20 24-40 2 -4~+6 30 18/16 6~10/1000
LMA-2008 13-24 26-48 2 -2~+6 16 6/10 6~15/150
LMA-2009 8-9.5 32-38 4 +5~+13 25 12/7 6~15/250
LMA-2010 8-11 32-44 4 0~+3 15 13/5 6~15/180
LMA-2011 8.5-9 34-36 4 -3~+3 28 15/8 6~10/780
LMA-2012 2 - 6 6 - 18 3 0 ~ +5 17 15/14 6~15/210
LMA-2013 9 - 18 18 - 36 2 -3 ~ +3 17 13/15 6~15/280
LMA-2014 5 - 13 15 - 39 3 -3 ~ +3 17 15/14 9~15/300
LMA-2015 10 - 12 80 - 96 8 +3~+7 10 6/6 6~12/30
LMA-2016 12.33 - 18.33 75 - 110 6 -2 ~ 4 5 12/12 6~10/200
LMA-2017 12.33 - 18.33 75 - 110 6 -2 ~ 4 15 12/12 6~10/310
LMA-3001 3-9 6- 18 x2 -3 ~ +3 20 / 5 / 250
LMA-3002 1.5 - 4.5 6- 18 x4 0~ +8 20 / 5 / 380
LMA-5001 0.01-1 0.02-2 2 +12~+16 0~+4 14/14 /
LMA-5002 0.9-2 1.8-4 2 +12~+18 -2~+4 14/14 /
LMA-5003 1.25-3 2.5-6 2 +12~+18 -3~+3 13/7 /
LMA-5004 2-4 4-8 2 +12~+18 -2~+4 9/14 /
LMA-5005 4-8 8-16 2 +12~+18 -5~+1 8/10 /
LMA-5006 0.85-2 1.7-4 2 +10~+20 -5~+5 10/10 /
LMA-5007 0.85-2 1.7-4 2 +10~+20 -5~+5 10/12 /
LMA-5008 2-4 4-8 2 +10~+15 -4~+1 7/7 /
LMA-5009 4-8 8-16 2 +10~+15 -6~-1 4/7 /
LMA-5010 9-14.5 18-29 2 3 14 14/9 12/95
LMA-5011 11.5-16.5 23-33 2 3 14 18/13 12/110
LMA-5012 6.5-12.25 13-24.5 2 3 14 18/13 12/95
LMA-5013 0.25-0.35 0.75-1.05 3 -3 7 16/13 12/105
LMA-5014 0.32-0.45 0.96-1.35 3 -3 3 16/12 12/105
LMA-5015 0.45-0.6 1.35-1.8 3 -3 6 18/13 12/105
LMA-5016 0.6-0.75 1.8-2.25 3 -3 1 16/8 12/105
LMA-5017 0.7-1 2.1-3 3 0 12 26/13 12/150
LMA-5018 0.95-1.5 2.85-4.5 3 0 9 26/13 12/150
LMA-5019 0.274-0.284 0.822-0.852 3 0 10 21/12 12/150
LMA-5020 0.289-0.299 0.867-0.897 3 0 10 21/16 12/150
LMA-5021 0.3-0.31 0.9-0.93 3 0 13 18/11 12/150
LMA-5022 0.31-0.32 0.93-0.96 3 0 12 13/10 12/150
LMA-5023 0.6-0.63 1.8-1.89 3 0 12 12/9 12/160
LMA-5024 0.8-0.833 2.4-2.499 3 0 12 8/10 12/160
LMA-5025 0.164-0.17 0.82-0.85 5 0 2 26/14 12/150
LMA-5026 0.173-0.179 0.865-0.895 5 0 2 26/16 12/150
LMA-5027 0.18-0.186 0.9-0.93 5 0 2 32/10 12/150
LMA-5028 0.186-0.192 0.93-0.96 5 3 0 21/14 12/150
LMA-5029 0.36-0.378 1.8-1.89 5 -5 3 16/9 12/170
LMA-5030 0.48-0.5 2.4-2.5 5 0 9 11/10 12/160
