功分器

功分器

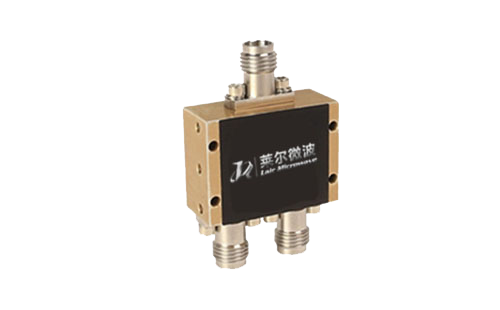

功分器全称功率分配器，是一种将一路输入信号能量分成两路或多路输出相等或不相等能量的器件，也可反过来将多路信号能量合成一路输出，此时也称为合路器。一个功分器的输出端口之间应保证一定的隔离度。莱尔微波的功分器覆盖500 MHz到50 GHz，具有大带宽低插损高隔离的特点，接受货架订购或客户定制，交货快捷。

型号PN	低频(MHz)	高频(MHz)	路数	插损(dB)	隔离度(dB)	幅度平衡(±dB)	相位平衡(°)	连接形式	规格书
LSN-0001	1	650	2	0.8	30	0.2	2	SMA(F)
LSN-0002	5	1000	2	0.4	23	0.2	2	SMA(F)
LSN-0003	20	2000	2	0.7	18	0.3	3	SMA(F)
LSN-0004	820	960	2	0.5	23	0.05	0.5	SMA(F)
LSN-0005	1510	1660	2	0.4	20	0.05	1	SMA(F)
LSN-0006	1700	1900	2	0.3	20	0.05	2	SMA(F)
LSN-0007	1850	1990	2	0.5	21	0.05	1	SMA(F)
LSN-0008	2200	2500	2	0.3	20	0.05	3	SMA(F)
LSR-0001	0	4200	2	0.5	6	0.5	5	SMA(F)
LSR-0002	0	7000	2	0.6	7	0.5	5	SMA(F)
LSN-1001	300	18000	2	2.8	17	0.4	4	SMA(F)
LSN-2001	6000	20000	2	0.5	22	0.1	5	SMA(F)
LSN-2002	2000	20000	2	0.9	22	0.1	5	SMA(F)
LSN-2003	8000	12000	2	0.4	24	0.05	4	SMA(F)
LSN-2004	1000	12000	2	1.1	22	0.1	4	SMA(F)
LSN-2005	2000	8000	2	1	16	0.1	5	SMA(F)
LSN-2006	2000	6000	2	0.8	24	0.05	4	SMA(F)
LSN-2007	1000	3000	2	0.8	19	0.05	4	SMA(F)
LSN-2008	500	2000	2	0.9	19	0.05	4	SMA(F)
LSN-2009	26000	36000	2	0.4	20	0.1	5	2.92mm(F)
LSN-2010	18000	40000	2	0.6	22	0.2	6	2.92mm(F)
LSN-2011	20000	50000	2	3	20	0.4	5	2.4mm(F)
LPD2S-2-18	2000	18000	2	≤1.0	≥18	≤0.3	±4°	SMA-(F)
LPD229-18-26.5	18000	26500	2	≤0.6	≥16	≤0.4	±4°	2.92mm-(F)
LPD229-26-31	26000	31000	2	≤1.0	≥16	≤0.4	±4°	2.92mm-(F)
LPD229-6-40	6000	40000	2	≤1.4	≥16	≤0.5	±5°	2.92mm-(F)
LPD229-18-40	18000	40000	2	≤1.0	≥16	≤0.4	±5°	2.92mm-(F)
LPD229-10-43	10000	43000	2	≤1.3	≥12	≤0.4	±5°	2.92mm-(F)
LPD229-10-43.3	10000	43300	2	≤1.6	≥14	≤0.5	±6°	2.92mm-(F)
LPD224-27-52	27000	52000	2	≤1.8	≥14	≤0.6	±6°	2.4mm-(F)
LPD2N-2-8	2000	8000	2	≤0.8	≥18	≤0.2	±3°	N-(F)
LPD3S-2-18	2000	18000	3	≤1.6	≥16	≤0.6	±10°	SMA-(F)
LPD329-26-31	26000	31000	3	≤1.5	≥16	≤0.6	±6°	2.92mm-(F)
LPD3N-0.5-6	500	6000	3	≤2.8	≥18	≤0.8	±8°	N-(F)
LPD4S-6-18	6000	18000	4	≤1.2	≥18	≤0.3	±6°	SMA-(F)
LPD4S-0.5-26.5	500	26500	4	≤5.2	≥16	≤0.4	±6°	SMA-(F)
LPD4S-2-26.5	2000	26500	4	≤2.6	≥16	≤0.5	±6°	SMA-(F)
LPD429-2-26.5	2000	26500	4	≤2.6	≥16	≤0.5	±6°	2.92mm-(F)
LPD429-18-26.5	18000	26500	4	≤1.6	≥16	≤0.4	±6°	2.92mm-(F)
LPD429-26-31	26000	31000	4	≤1.4	≥16	≤0.4	±6°	2.92mm-(F)
LPD429-34-36	34000	36000	4	≤1.4	≥16	≤0.4	±5°	2.92mm-(F)
LPD429-10-40	10000	40000	4	≤1.5	≥16	≤0.4	±6°	2.92mm-(F)
LPD429-18-40	18000	40000	4	≤1.6	≥16	≤0.4	±8°	2.92mm-(F)
LPD4291-18-40	18000	40000	4	≤1.5	≥16	≤0.4	±6°	2.92mm-(F)
LPD429-2-40	2000	40000	4	≤3.0	≥15	≤0.5	±10°	2.92mm-(F)
LPD424-18-50	18000	50000	4	≤2.5	≥15	≤0.6	±10°	2.4mm-(F)
LPD4N-0.5-6	500	6000	4	≤2.0	≥18	≤0.3	±4°	N-(F)
LPD6S-2-18	2000	18000	6	≤2.6	≥16	≤0.6	±8°	SMA-(F)
LPD8S-2-18	2000	18000	8	≤3.2	≥16	≤0.5	±10°	SMA-(F)
LPD8N-0.8-2.7	800	2700	8	≤1.5	≥20	≤0.4	±4°	N-(F)
LPD16S1-6-18	6000	18000	16	≤1.8	≥17	≤0.8	±4°	SMA-(F)
LPD24S-20-480	20	480	24	≤2.4	≥16	≤1.0	±12°	SMA-(F)
LPD24S-1.3-1.6	1300	1600	24	≤1.4	≥20	≤0.5	±6°	SMA-(F)
LPD32S-0.5-6	500	6000	32	≤5.0	≥18	≤0.5	±10°	SMA-(F)
LPD5S-2-4	2000	4000	5	≤1.0	≥18	≤0.8	±8°	SMA-(F)
LPD10S-0.6-6	600	6000	10	≤3.5	≥18	≤0.8	±12°	SMA-(F)
LPD12S-6-18	6000	18000	12	≤2.0	≥16	0.6	±8°	SMA-(F)
LPD18S-0.9-1.3	900	1300	18	≤1.0	≥18	≤0.5	±3°	SMA-(F)
LPD48S-500-510	500	510	48	≤1.6	≥20	≤0.4	±5°	SMA-(F)
LPD64S-1-2	1000	2000	64	≤1.8	≥18	≤0.5	±8°	SMA-(F)
LSN-3001	3000	4000	64	2	20	±0.6	±10	SMA(F)
LSN-3002	2000	18000	16	6.9	15	±1.0	±9°	SMA-(F)
LSN-3003	5000	7100	16	2.5	20	±0.4	±8°	SMA-(F)
