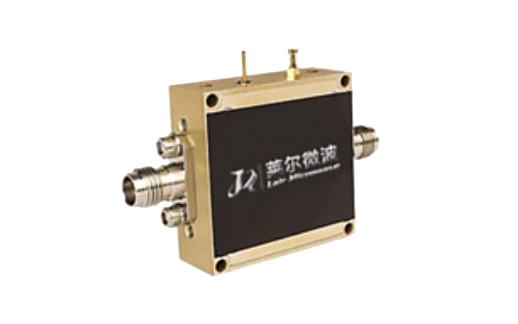

分频器

分频器

分频器(Divider)是一种电子电路或设备，用于将输入信号的频率降低到较低的频率。它通常将输入信号进行分割、计数或逻辑操作来实现。分频器的主要工作原理是根据特定的分频比将输入的周期性信号划分为多个周期较长的信号。例如，一个2分频器会将输入信号的每个周期分为两个周期，从而将频率降低一半。分频器在电子设备中有广泛的应用，如通信系统、计算机时钟、数字信号处理、频率合成器和测试仪器等。

型号PN	低频(GHz)	高频(GHz)	分频比	100KHz单边带相位噪声(dBc/Hz)	输入功率(dBm)	输出功率(dBm)	直流(V/mA)	规格书
LFD-0001	0.1	12	2	-145	-15 to +10	+2	12/85
LFD-0002	0.5	18	2	-147	-15 to +10	-4	12/85
LFD-0003	0.1	20	2	-150	-9 to +10	-2	5/150
LFD-0004	0.1	24	2	-150	-15 to +10	0	12/75
LFD-0005	0.1	7	3	-150	-12 to +12	-1	12/70
LFD-0006	0.1	13	4	-148	-15 to +10	+5	12/120
LFD-0007	0.5	18	4	-147	-15 to +10	-4	12/110
LFD-0008	0.1	20	4	-150	-9 to +10	0	5/150
LFD-0009	0.1	24	4	-150	-15 to +10	0	12/85
LFD-0010	10	26	4	-150	-15 to +10	-4	12/100
LFD-0011	0.1	7	5	-150	-10 to 10	-1	12/80
LFD-0012	0.1	15	5	-150	-19 to +10	+3	5/180
LFD-0013	0.2	6	6	-144	-12 to +12	-1	12/100
LFD-0014	0.1	15	6	-150	-20 to +10	+4	5/175
LFD-0015	0.1	15	7	-150	-23 to +10	+4	5/175
LFD-0016	0.1	12	8	-150	-15 to +10	-6	12/75
LFD-0017	0.5	18	8	-147	-15 to +10	-4	12/110
LFD-0018	0.1	20	8	-150	-9 to +10	+4	5/150
LFD-0019	0.1	24	8	-150	-15 to +10	+2	12/85
LFD-0020	0.1	7	9	-150	-10 to +10	-1	12/145
LFD-0021	0.1	15	9	-150	-15 to +10	+4	5/175
LFD-0022	0.2	6	10	-144	-12 to +12	+1	12/95
LFD-0023	0.2	6	12	-144	-12 to +12	0	12/100
LFD-0024	0.1	13	12	-145	-15 to +10	-1	12/185
LFD-0025	0.1	7	15	-150	-10 to +10	-1	12/150
LFD-0026	0.4	4	16	-144	-12 to +12	-2	12/70
LFD-0027	0.2	6	20	-144	-12 to +12	+2	12/95
LFD-0028	0.1	13	20	-145	-15 to +10	-2	12/200
LFD-0029	0.1	12	24	-147	-15 to +10	-1	12/150
LFD-0030	0.1	7	25	-150	-10 to +10	-1	12/170
LFD-0031	0.3	4	27	-144	-12 to +12	0	12/75
LFD-0032	0.3	4	30	-144	-12 to +12	-1.5	12/75
LFD-0033	0.4	4	32	-144	-12 to +12	+1	12/70
LFD-0034	0.4	4	36	-144	-12 to +12	0	12/75
LFD-0035	0.1	12	40	-147	-15 to +10	-1	12/150
LFD-0036	0.5	6	45	-144	-12 to +12	0	12/85
LFD-0037	0.3	4	48	-144	-12 to +12	0	12/75
LFD-0038	0.5	6	50	-144	-12 to +12	0	12/85
LFD-0039	0.3	4	54	-144	-12 to +12	0	12/75
LFD-0040	0.3	4	60	-144	-12 to +12	-1.5	12/75
LFD-0041	0.8	8	64	-144	-10 to +10	0	12/75
LFD-0042	0.4	4	68	-144	-12 to +12	0	12/75
LFD-0043	0.8	8	72	-144	-10 to +10	0	12/75
LFD-0044	0.8	8	80	-144	-10 to +10	-1.5	12/70
LFD-0045	0.5	6	85	-144	-12 to +12	0	12/85
LFD-0046	0.3	4	96	-144	-12 to +12	-1	12/75
LFD-0047	0.3	4	99	-144	-12 to +12	-1	12/75
LFD-0048	0.5	6	100	-144	-12 to +12	-1.5	12/85
LFD-0049	0.3	4	120	-144	-12 to +12	-1.5	12/75
LFD-0050	0.8	8	128	-144	-10 to +10	0	12/75
LFD-0051	0.4	4	132	-144	-12 to +12	-1	12/75
LFD-0052	0.8	8	136	-144	-10 to +10	0	12/75
LFD-0053	0.8	8	160	-144	-10 to +10	-1.5	12/70
LFD-0054	0.5	6	165	-144	-12 to +12	-1	12/85
LFD-0055	0.3	4	192	-144	-12 to +12	-1	12/75
LFD-0056	0.3	4	195	-144	-12 to +12	-1	12/75
LFD-0057	0.3	4	240	-144	-12 to +12	-1.5	12/75
LFD-0058	0.8	8	256	-144	-10 to +10	-1	12/75
LFD-0059	0.4	4	260	-144	-12 to +12	-1	12/75
LFD-0060	0.8	8	264	-144	-10 to +10	-1	12/75
LFD-0061	0.8	8	320	-144	-10 to +10	-1.5	12/70
LFD-0062	0.5	6	325	-144	-12 to +12	-1	12/85
LFD-0063	0.3	4	381	-144	-12 to 12	-1	12/75
LFD-0064	0.3	4	384	-144	-10 to +10	-1	12/75
LFD-0065	0.5	6	400	-144	-12 to +12	-1.5	12/85
LFD-0066	0.4	4	508	-144	-10 to +10	-1	12/75
LFD-0067	0.8	8	512	-144	-10 to +10	-1	12/75
LFD-0068	0.8	8	520	-144	-10 to +10	-1	12/75
LFD-0069	0.5	6	635	-144	-12 to +12	-1	12/85
LFD-0070	0.8	8	640	-144	-10 to +10	-1.5	12/70
LFD-0071	0.3	4	765	-144	-12 to +12	-1	12/75
LFD-0072	0.3	4	768	-144	-12 to +12	-1	12/75
LFD-0073	0.8	8	1016	-144	-10 to +10	-1.5	12/70
LFD-0074	0.4	4	1020	-144	-10 to +10	-1	12/75
LFD-0075	0.8	8	1024	-144	-10 to +10	-1.5	12/70
LFD-0076	0.5	6	1275	-144	-12 to +12	-1	12/85
LFD-0077	0.5	6	1280	-144	-12 to +12	-1	12/85
LFD-0078	0.8	8	2040	-144	-10 to +10	-1.5	12/70
LFD-0079	0.8	8	2048	-144	-10 to +10	-1.5	12/70
